HVGC-150-700B

SKU : HVGC-150-700B

Price

95.00 USD


105.00 USD

 (-10%)
Quantity to buy
Total 95.00 USD

Do not have enough stock

Out of stock

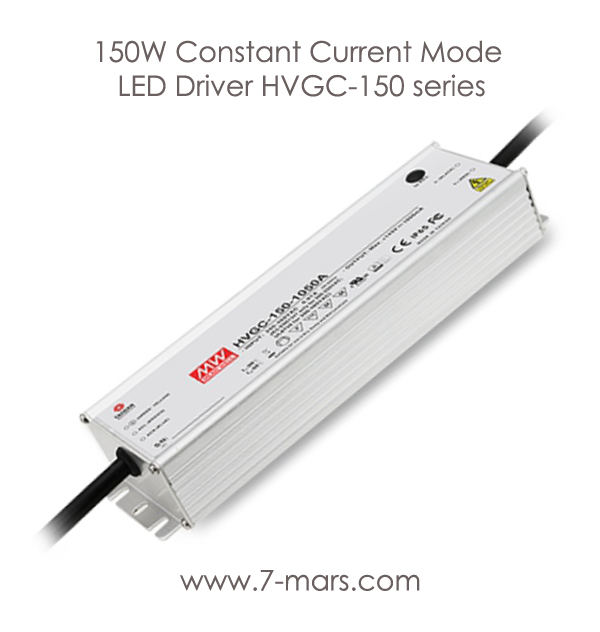

150W Constant Current Mode LED Driver HVGC-150 series

*Type B IP67 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance)   / Note : In Stock  Power Output : 150.5W. / Voltage : 21 - 215V / Current : 700mA.

Description

HVGC-150 series is a 150W LED AC/DC LED power supply featuring the constant current mode and highvoltage output. HVGC-150 operates from 180-528VAC and offers models with different rated current rangingbetween 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entireseries is able to operate for -40°C ~ +80°C case temperature under free air convection. The design of metalhousing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-150 is equipped with various function options, such as dimming methodologies, so as to providethe optimal design flexibility for LED lighting system.

Features

  • Wide input range 180 ~ 528VAC
  • Constant Current mode output
  • Metal housing with Class I design
  • Built-in active PFC function
  • IP67 / IP65 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer;
  • 3 in 1 dimming (dim-to-off) ; Timer dimming
  • Typical lifetime>50000 hours
  • 5 years warranty

Applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • Type “HL" for use in Class I , Division 2
  • hazardous (Classified) location.
