HVGC-100-350B
SKU : HVGC-100-350B
| Price |
99.00 USD 109.00 USD (-9%) |
| Quantity to buy | |
| Total | 99.00 USD |
Do not have enough stock
Out of stock

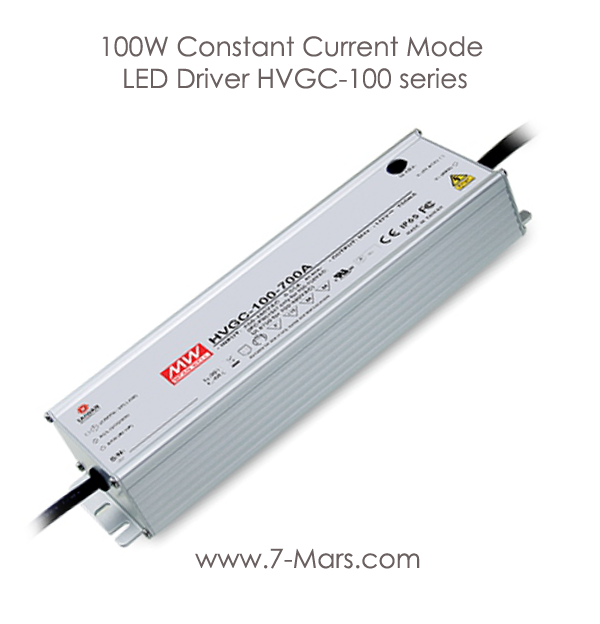

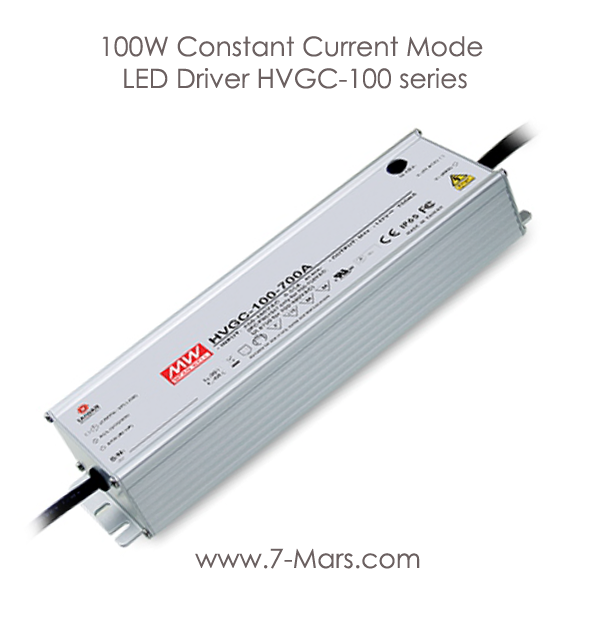

100W Constant Current Mode LED Driver HVGC-100 series
*Type B IP65 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) / Note : In Stock Power Output :99.75W. / Voltage : 29 - 285V / Current : 350mA.
Description
HVGC-100 series is a 100W LED AC/DC LED drive featuring the constant current mode and high voltageoutput. HVGC-100 operates from 180-528 VAC and offers models with different rated current, 350mAand 700mA, respectively. Thanks to the high efficiency up to 91%, with the fanless design, the entireseries is able to operate for -40°C - +90°C case temperature under free air convection. The design of metalhousing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant Current mode output
- Metal housing with Class I design
- Built-in active PFC function
- IP67 / IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer;
- 3 in 1 dimming (dim-to-off) ; Timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
