HVGC-65-350AB
SKU : HVGC-65-350AB
| Price |
59.00 USD 66.00 USD (-11%) |
| Quantity to buy | |
| Total | 59.00 USD |
Do not have enough stock
Out of stock

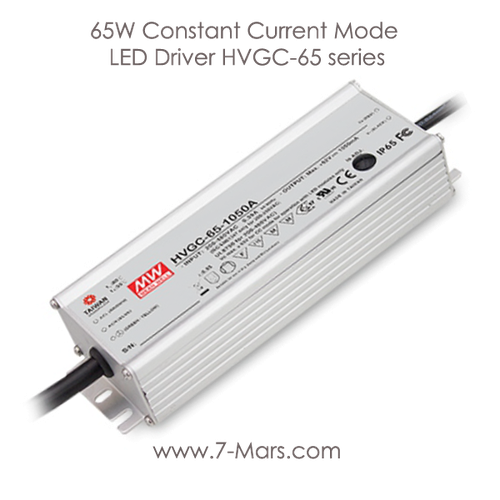

65W Constant Current Mode LED Driver HVGC-65 series
*Type AB IP65 lo adjustable through built-in potentiometer &
3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) / Note : In Stock Power Output :65.1W. / Voltage : 18 - 186V / Current : 350mA.
Description
HVGC-65 series is a 65W LED AC/DC LED power supply featuring the constant current mode and highvoltage output. HVGC-65 operates from 180-528VAC and offers models with different rated current rangingbetween 350mA and 1050mA. Thanks to the high efficiency up to 90.5%, with the fanless design, the entireseries is able to operate for -40°C+80C case temperature under free air convection. The design of metalhousing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-65 is equipped with various function options, such as dimming methodologies, so as to providethe optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VACConstant Current mode output
- Metal housing with Class I design Built-in active PFC function
- IP67 / IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off) ; Timer dimming
- ypical lifetime>50000 hours
- 5 years warranty
Applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
