HVGC-65-350D

SKU : HVGC-65-350D

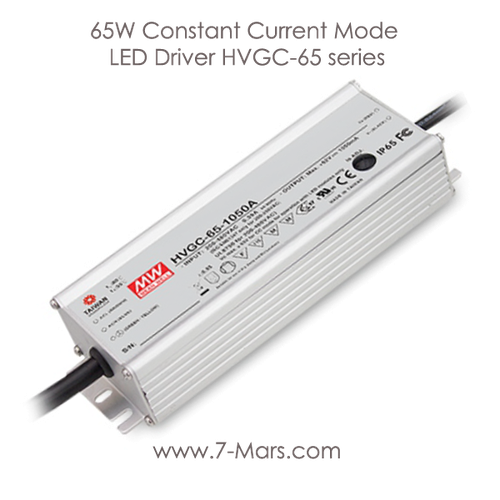

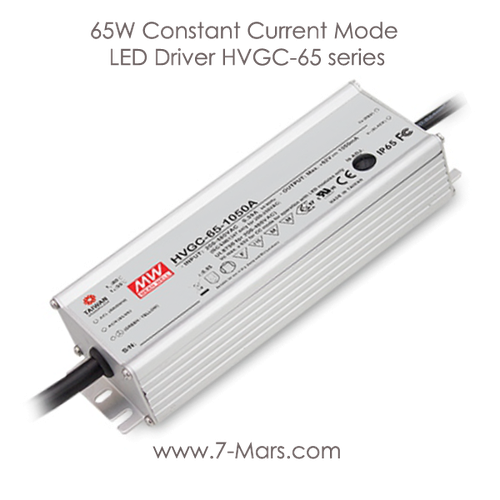

65W Constant Current Mode LED Driver HVGC-65 series

*Type D IP67 Timer dimming function, contact MEAN WELL for details(safety pending). / Note : In Stock  Power Output :65.1W. / Voltage : 18 - 186V / Current : 350mA.

Description

HVGC-65 series is a 65W LED AC/DC LED power supply featuring the constant current mode and highvoltage output. HVGC-65 operates from 180-528VAC and offers models with different rated current rangingbetween 350mA and 1050mA. Thanks to the high efficiency up to 90.5%, with the fanless design, the entireseries is able to operate for -40°C+80C case temperature under free air convection. The design of metalhousing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-65 is equipped with various function options, such as dimming methodologies, so as to providethe optimal design flexibility for LED lighting system.

Features

• Wide input range 180 ~ 528VACConstant Current mode output
• Metal housing with Class I design Built-in active PFC function
• IP67 / IP65 design for indoor or outdoor installations
• Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off) ; Timer dimming
• ypical lifetime>50000 hours
• 5 years warranty

Applications

• LED street lighting
• LED high-bay lighting
• Parking space lighting
• LED fishing lamp
