ELG-300-24A

SKU : ELG-300-24A

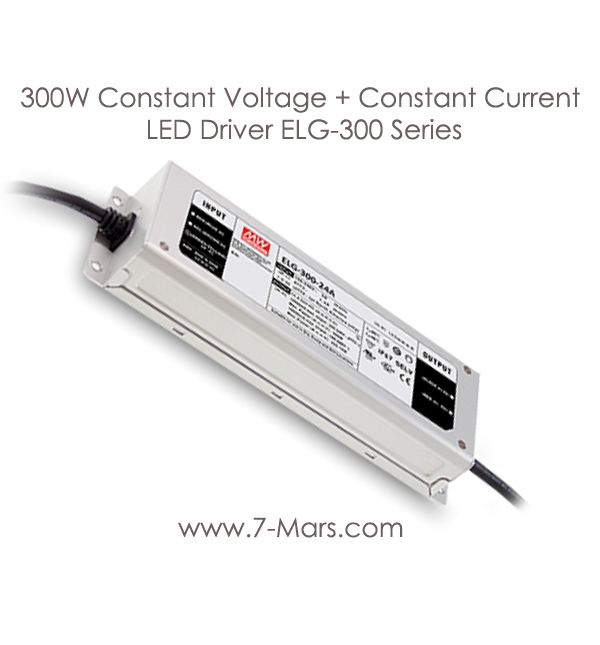

300W Constant Voltage + Constant Current LED Driver ELG-300 Series

*Type A IP67 Function lo and Vo adjustable through built-in potentiometer. / Note : In Stock  Power Output :300W. / Voltage : 14.4 - 24V / Current : 12.5A.

Description :

ELG-300 series is a 300W LED driver featuring with constant current and Constant voltage mode design. ELG-300 operates from 100-305VAC and offers CV mode or CC mode applications. Thanks to the high efficiency up to 94%, with the fanless design, the ambient temperature can be operated for -40C-+85°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment- adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world, as to provide the optimal design flexibility for LED lighting system.

Features :

1. Constant Voltage + Constant Current mode output
2. Protection Functions: OCP,SCP OVP,OTP
3. IP67 rating for indoor or outdoor installations
4. Output adjustable via potentiometer
5. Typical lifetime>50000 hours
6. 5 years warranty

Applications :

1. LED bay lighting
2. LED stage lighting
3. LED flood lighting
4. LED strip lighting
5. DMX control system
