ELG-240-54B-Blank

SKU : ELG-240-54B-Blank

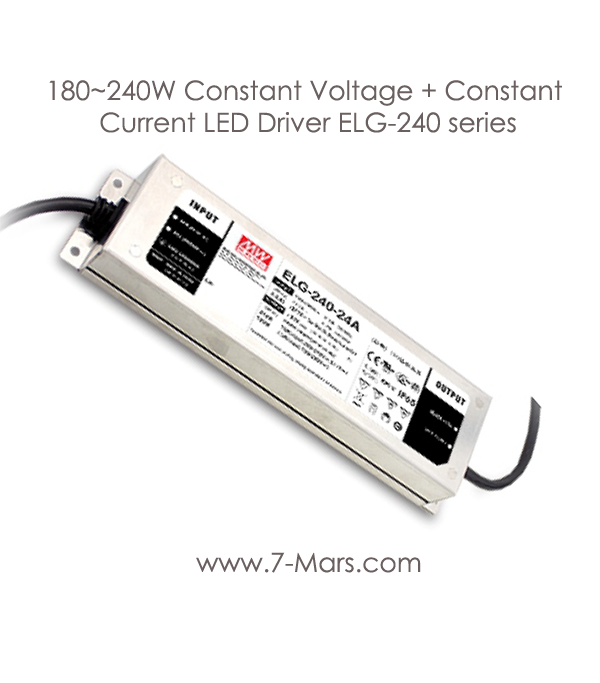

180~240W Constant Voltage + Constant Current LED Driver ELG-240 series

*Type B IP67 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) / Note : In Stock  Power Output :240.3W. / Voltage : 27 - 54V / Current : 4.45A.

*BLANK : 2-wire input for standard model

Description :

ELG-240 series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-240 operates from 100-305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40°C ~ +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features :

1. Constant Voltage + Constant Current mode output
2. Metal housing design with functional Ground
3. Built-in active PFC function
4. No load / Standby power consumption <0.5W
5. IP67 / IP65 rating for indoor or outdoor installations
6. Function options: output adjustable via potentiometer;
7. 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
8. Typical lifetime>50000 hours
9. 5 years warranty

Applications :

1. LED street lighting
2. LED architectural lighting
3. LED bay lighting
4. LED floodlighting
5. Type "HL” for use in Class 1. Division 2 hazardous (Classified) location.
