PWM-60-24-KNBST

SKU : PWM-60-2-KNBST

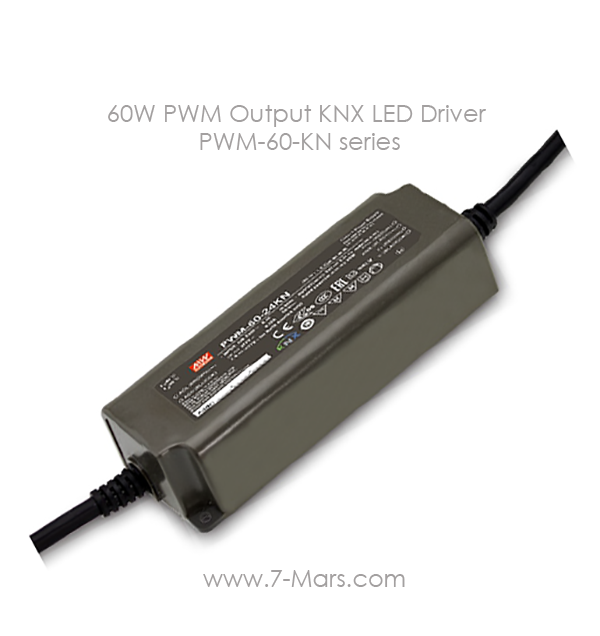

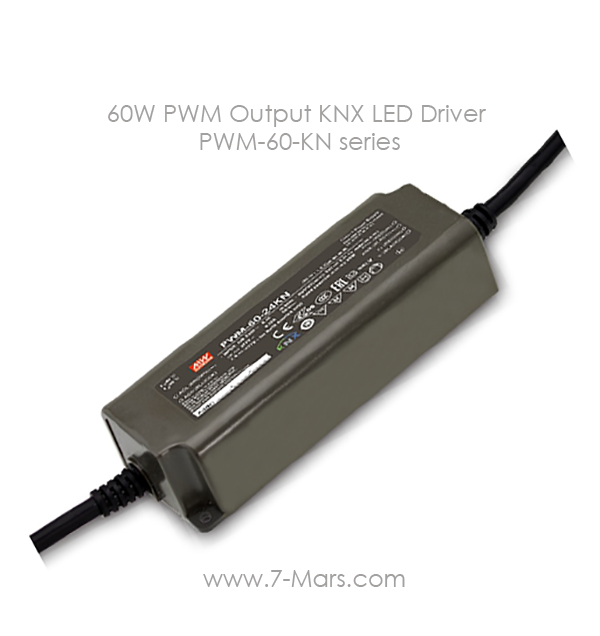

60W PWM Output KNX LED Driver PWM-60-KN series

*Type KNBST KNX control technology with BST14 connector Note : In Stock  Power Output :60W. / Voltage : 24V / Current : 2.5A.

Description

PWM KN series is a 60W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the colour temperature and the brightness honneity when driving all kinds of LED strips and constant voltage LED bulbs. The built-in KNX interface is avoid using the complicated KNX-DALI gateway. PWM KN operates from 90-305VAC and offers two models with output voltage 12V and 24V. Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -35°C - +90°C case temperature under free air convection. The minimal dimming level low to 0.01% is suitable for low light level applications e.g. cinema. The output frequency is changeable up to 4KHz complaint IEEE 1789 2015 no risk requirement and EU Ecodesign stroboscopic visibility measureſ SVM) requirement providing a great solution for health concern due to light fickering.

Features

• Constant Voltage PWM style output
• with user changeable frequency up
• to 4KHz compliant IEEE1789-2015
• and EU Ecodesign SVM requirement
• Min. dimming level 0.01%
• Plastic housing with class II design
• Standby power consumption<0.5W
• Integrated KNX control protocol
• No need KNX-DALI gateway
• Typical lifetime>50000 hours
• 5 years warranty

Applications

• LED strip lighting
• Indoor LED lighting
• LED decorative lighting
• LED architecture lighting
