PWM-90-48DA2

SKU : PWM-90-48DA2

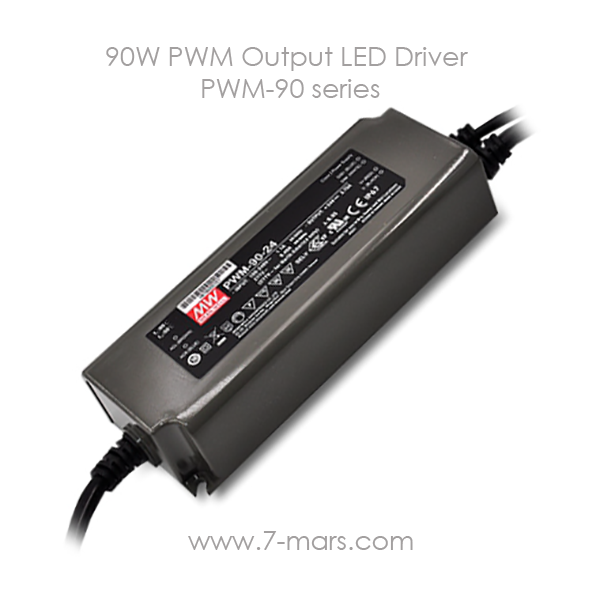

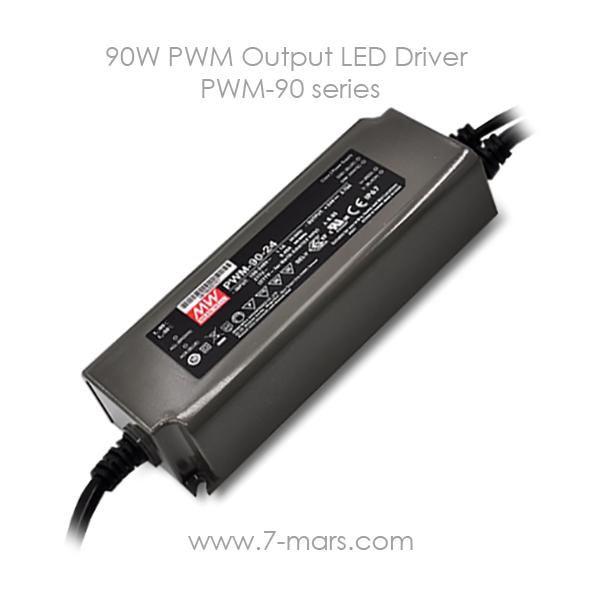

90W PWM Output LED Driver PWM-90 series

*Type DA2 IP67 DALI 2.0 control technology (for 12V/24V with DA2 type only) Note : In Stock  Power Output :90.44W. / Voltage : 48V / Current : 1.88A.

Description

PWM-90 series is a 90W LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.PWM-90 operates from 90-305 VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high eficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40°C - +85°C case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-90 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

Features

• Constant Voltage PWM style output
• Emergency lighting application is available
• according to IEC61347-2-13
• Built-in active PFC function and class II design
• Class 2 power unit(except PWM-90-12)
• No load power consumption <0.5W
• Fully encapsulated with IP67 level
• Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0
• Minimum dimming level 0.2% for DALI type
• Typical lifetime>50000 hours and 5 years warranty

Applications

• LED strip lighting
• Indoor LED lighting
• LED decorative lighting
• LED architecture lighting
