PWM-120-48DA

SKU : PWM-120-48DA

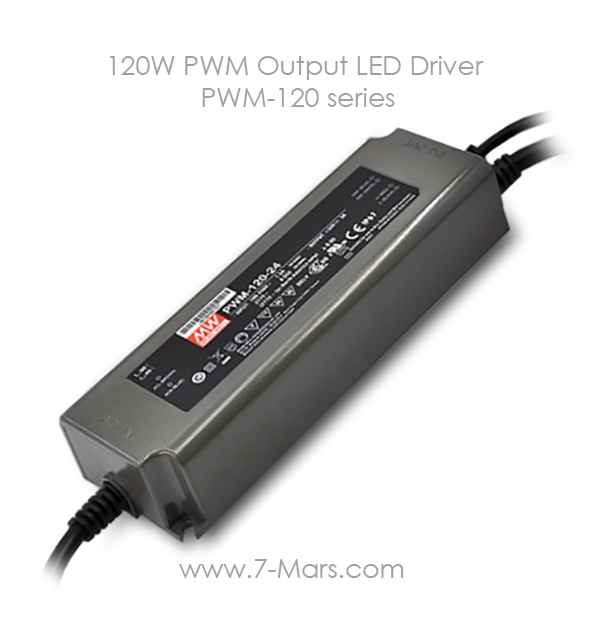

120W PWM Output LED Driver PWM-120 series

*Type DA IP67 DALI control technology (for 12V/24V with DA type only) Note : In Stock  Power Output :120W. / Voltage : 48V / Current : 2.5A.

Description

PWM-120 series is a 120W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. PWM-120 operates from 90-305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40°C+90 C case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet lorations. PWM-120 is equipped with dimming function that varies the duty cycle of the output, providing to exibility for LED strips applications.

Features

• Constant voltage PWM style output
• Emergengcy lighting application is available
• according to IEC61347-2-13
• Built-in active PFC function and class II design
• No load power consumption <0.5W/ standby power
• consumption <0.5W(DA/DA2-type)
• Fully encapsulated with IP67 level
• Function options: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0
• Minimum dimming level 0.2% for DALI type
• Typical lifetime>50000 hours and 5 years warranty

Applications

• LED strip lighting
• Indoor LED lighting
• LED decorative lighting
• LED architecture lighting
• Type "HL" for use in class I, division 2
• hazardous (classified) location.
