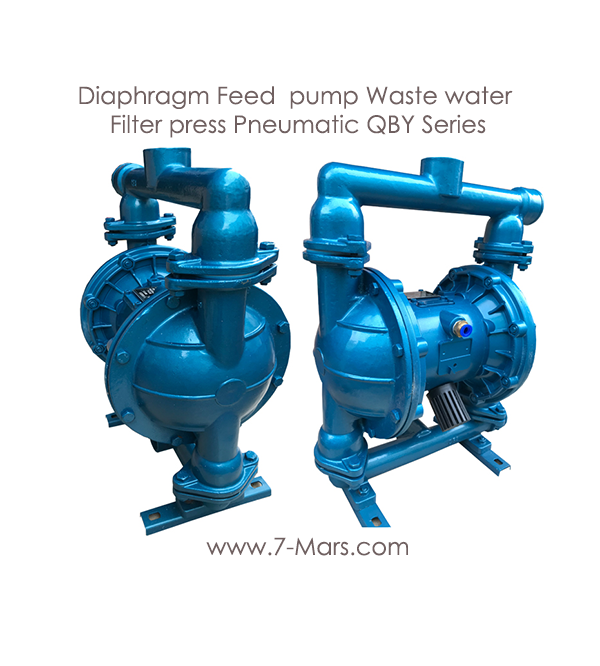

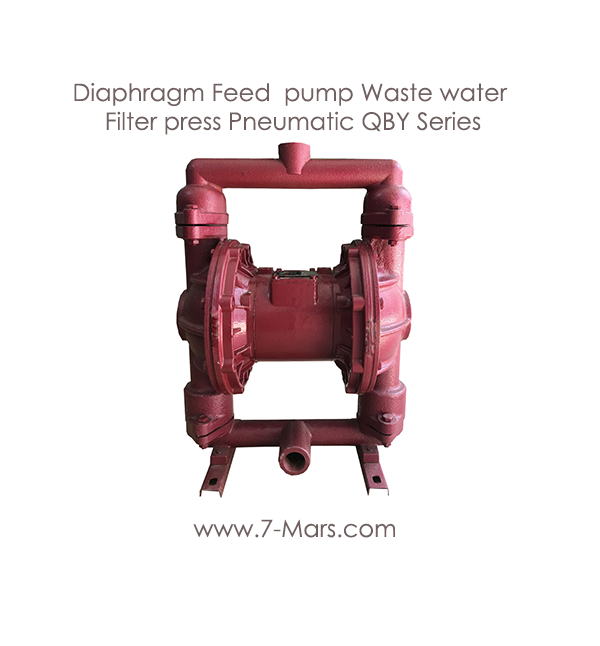

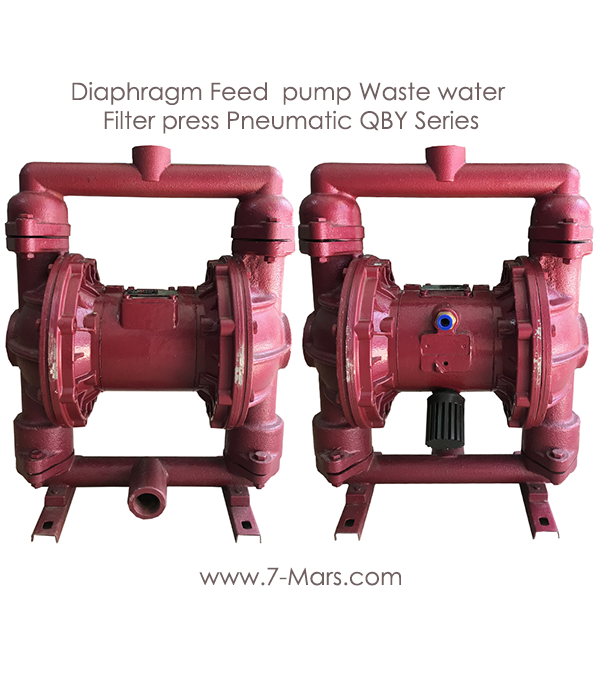

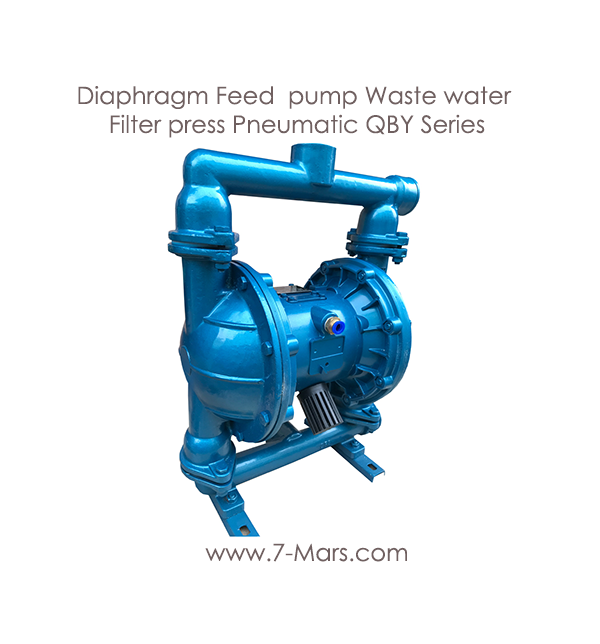

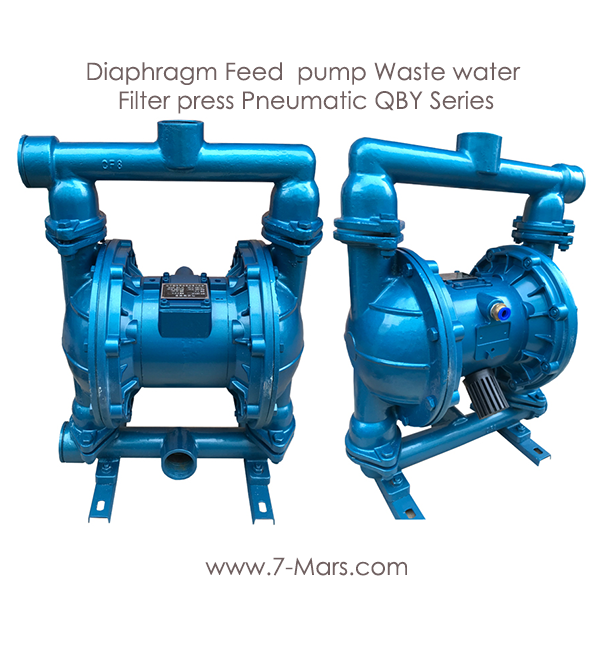

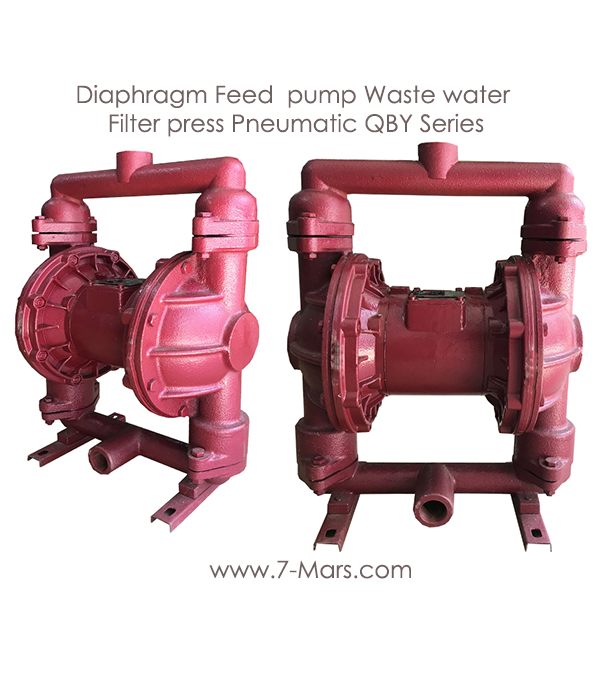

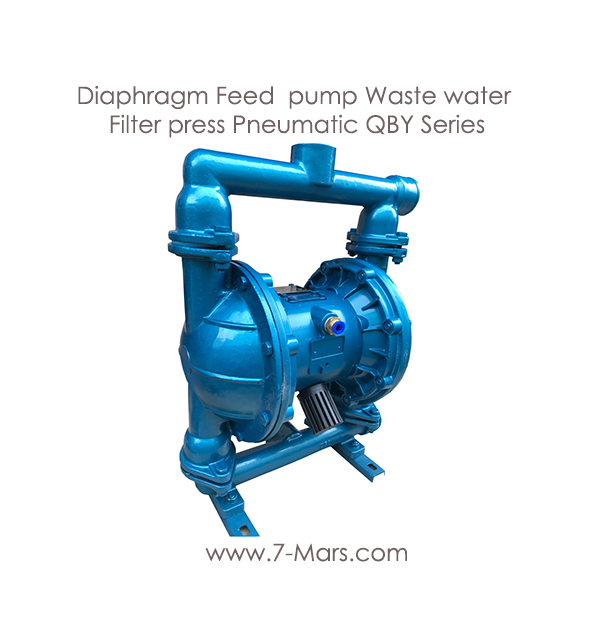

QBY-15
SKU : QBY-15
| Price |
0.00 USD |
| Quantity to buy | |
| Total | 0.00 USD |
Do not have enough stock
Out of stock
Construction site Manufacturing Chemical industry Sludge Mud Waste water
Filter press Pneumatic Feed Diaphragm pump
Pneumatic diaphragm pump is a displacement pump driven by compressed air and caused by diaphragm reciprocating deformation of volume change. Its working principle is similar to that of plunger pump. Due to the characteristics of the working principle of pneumatic diaphragm pump, the pneumatic diaphragm pump has the following characteristics:
(1) the pump will not overheat: compressed air for power, in the exhaust is an expansion of heat absorption process, the air pump work temperature is reduced, no harmful gas emissions.
(2) no spark: the pneumatic diaphragm pump does not use electricity as power, grounding and prevent electrostatic spark.
(3) it can pass through the liquid containing particles: because the positive displacement work and the inlet is a ball valve, it is not easy to be blocked.
(4) the shear force of materials is very low: how to suck in and how to spit out when working, so the minimum agitation of materials, suitable for the transportation of unstable materials.
(5) the flow can be adjusted. Throttle valve can be installed at the outlet of the material to adjust the flow.
(6) it has self-imbibition function.
(7) it can run empty without any danger.
(8) can dive to work.
(9) a wide range of fluids can be transported, from low viscosity to high viscosity, from corrosive to viscous.
(10) no complex control system, no cables, fuses, etc.
(11) small size, light weight, easy to move.
(12) no need for lubrication, so it is easy to maintain and will not pollute the working environment due to dripping.
(13) the pump can always maintain high efficiency and will not be reduced due to wear and tear.
(14) 100% energy utilization, when the outlet is closed, the pump will stop automatically, without equipment movement, wear, overload and heat.
(15) no moving seal, easy maintenance to avoid leakage, no dead point when working.
หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ มีบริการติดตั้ง จัดส่งถึงมือลูกค้าก่อนชำระเงิน สำหรับร้านค้าและช่างมีราคา พิเศษ สามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ
