SWP750-6P

SKU : SWP750-6P

Price

0.00 USD

Quantity to buy
Total 0.00 USD

Do not have enough stock

Out of stock

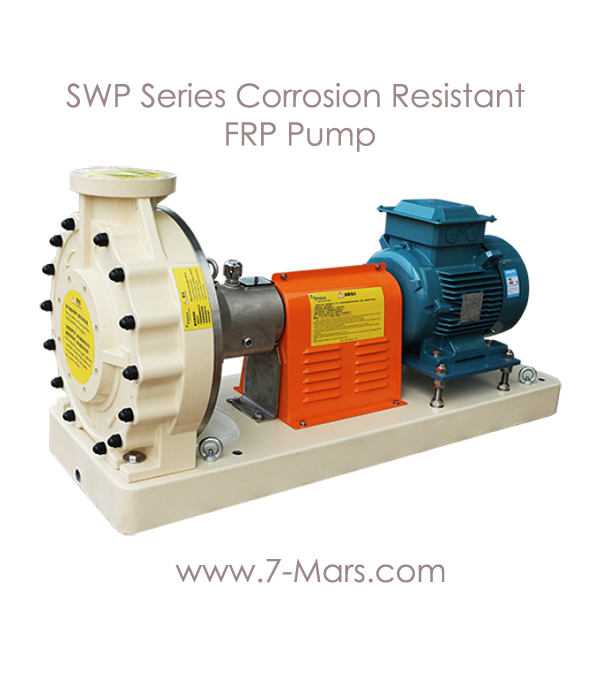

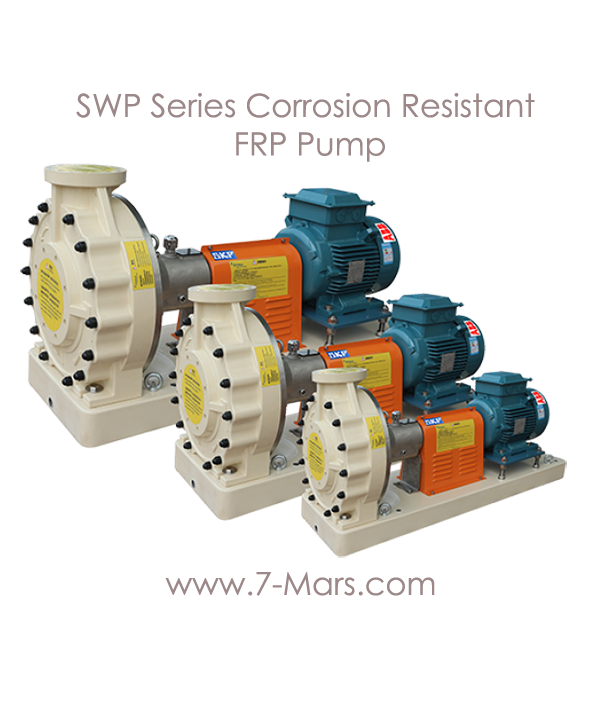

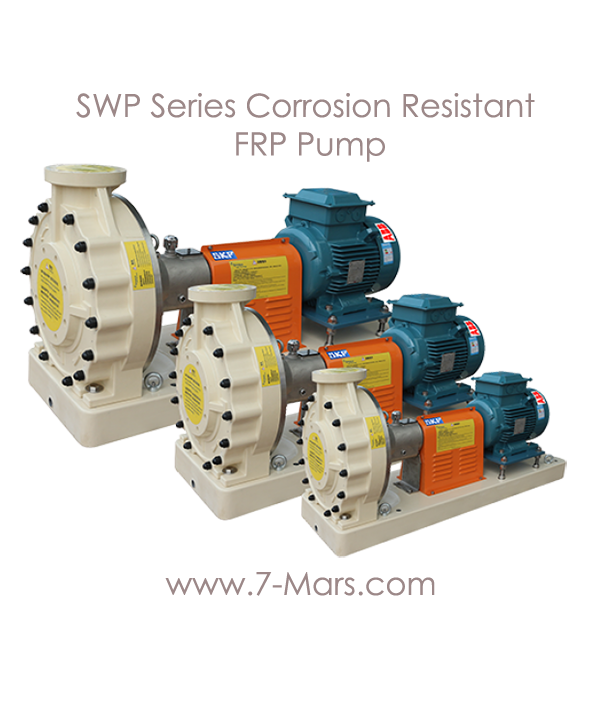

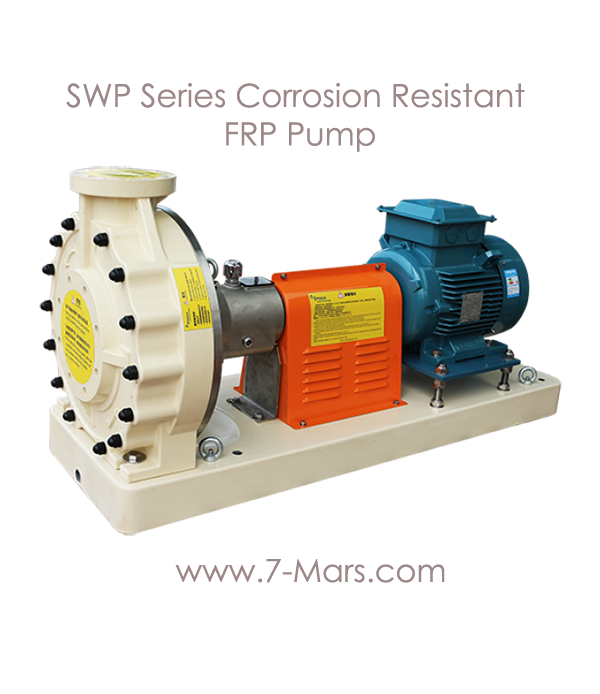

SWP Series Corrosion Resistant FRP Pump

HIGH RESISTANCE TO CORROSIVE LIQUIDS For aquatic parks, aquariums, zoos, and water treatment

SWP Series Pump combines materials and manufacturing technology to provide strong resistance to corrosive liquids and the reliability to work under extreme environments. The SWP pump is a Single Stage, End Suction, Horizontal Centrifugal Pump, designed to ISO 5199-2002 Standards for Chemical Process Pumps. The pumps are designed with vertical centerline discharge and back pull-out construction. All wet parts are corrosion resistant and non-metallic.

Product Feature :

  1. Compliance with European DIN Standard
  2. Smooth hydraulic passages to increase pump efficiency 3

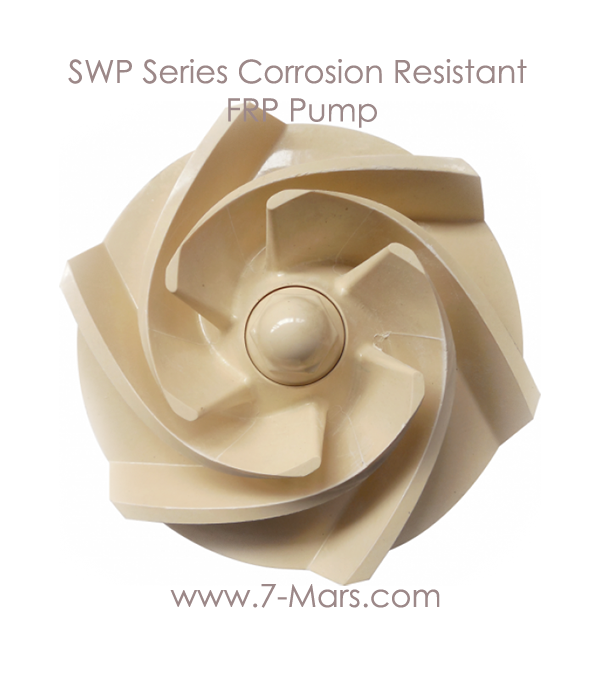

  3. Tapered polygon impeller provides high capacity and greater efficiency
  4. Externally adjustable impeller clearance provides ease of maintenance and maximum efficiency
  5. All wet parts in either Vinyl or Ester Epoxy Resin provide better chemical resistance

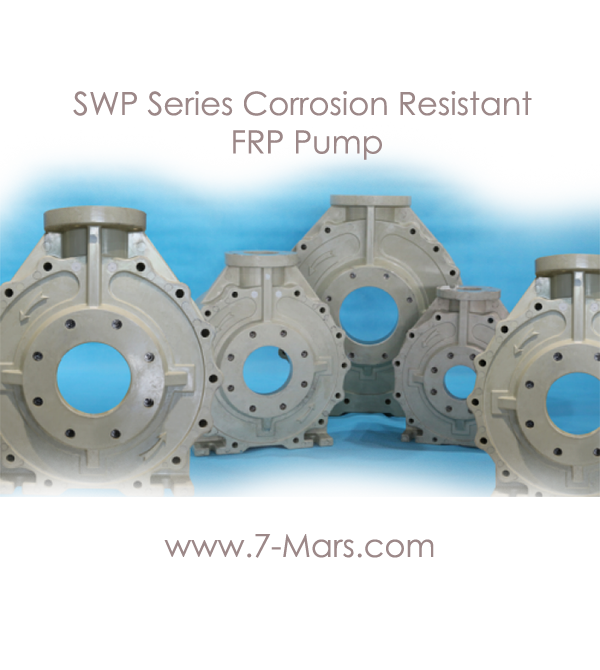

  6. Bolts through casing ensure O-ring seal integrity under all hydraulic operating conditions
  7. Integral shaft sleeve design protects the pump shaft from exposure to fluids
  8. Large Swedish made SKF bearings ensure long operation life
  9. Heavy-duty shaft minimizes deflection to maximize mechanical seal life

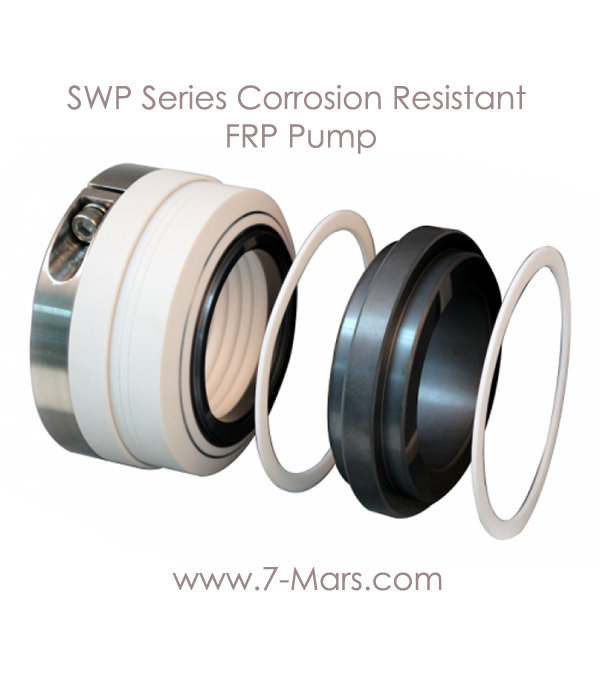

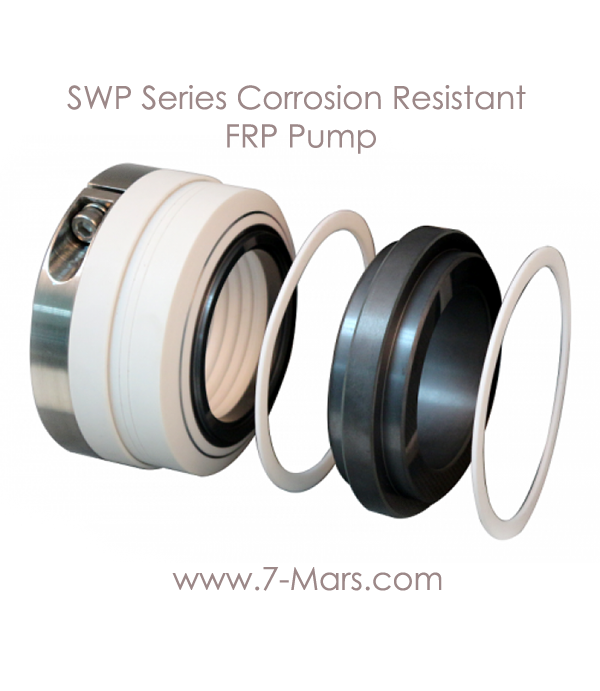

  10. External type AISI-316L mechanical seal for highly corrosive fluids, static and rotating ring in SiC and Spring
  11. Polyester thermosetting powder coated power frame construction prevent external corrosion
  12. Coupled to ABB Motor. Optional earthing rings or insulated bearings prevent bearing erosion when installing with VFD for the electric motor speed control.
  13. IPX5 Waterproof Standard

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ มีบริการติดตั้ง จัดส่งถึงมือลูกค้าก่อนชำระเงิน สำหรับร้านค้าและช่างมีราคา พิเศษ สามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ

Order tracking

             Picture & Data sheet Download :
