Cycle Time Timer Delay Switch

SKU : DDC-432

Price

3.00 USD


4.00 USD

 (-25%)
Quantity to buy
Total 3.00 USD

Do not have enough stock

Out of stock

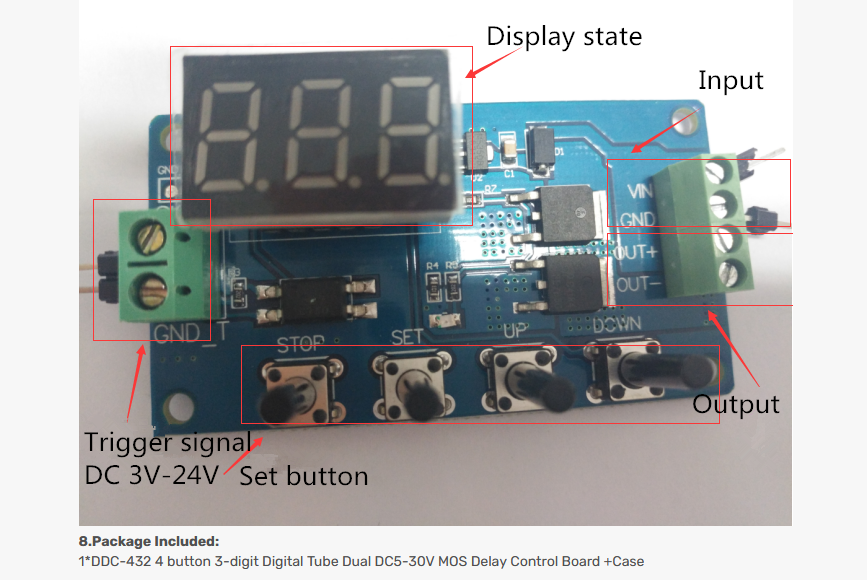

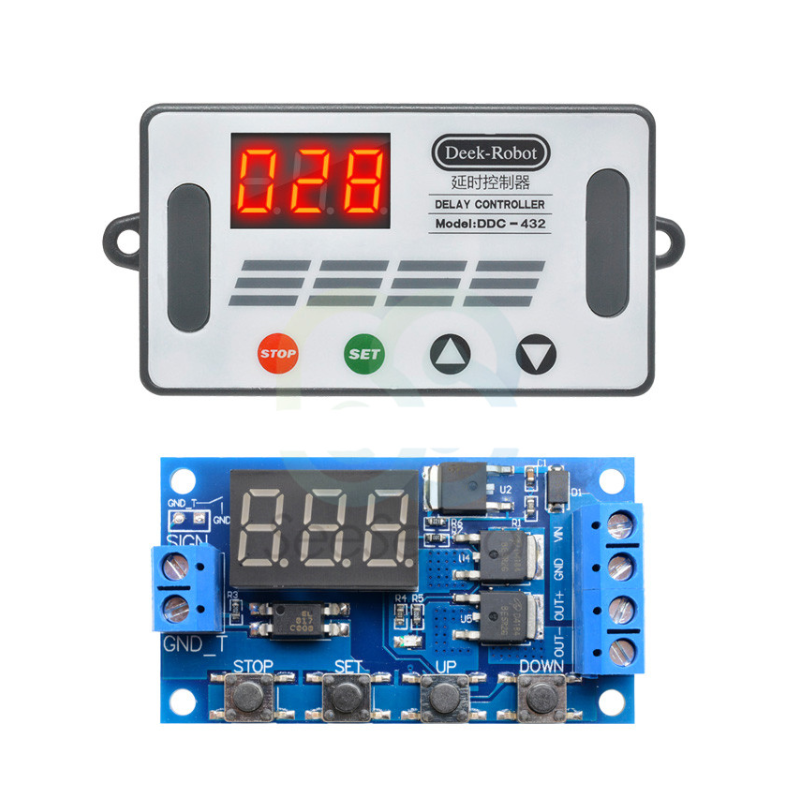

DC 5V-30V Dual MOS Time Delay LED Digital Display

Description:

Dual MOS parallel active output, lower internal resistance, larger current, strong power interface, clear and simple, powerful, one-button emergency stop function (STOP button), with reverse connection protection, reverse connection, no burning, power-off memory. Increase Sleep mode, after enabling, no operation within 5 minutes, automatically turn off the display, wake up any button! You can set different OP, CL, LOP parameters, these parameters are independent of each other, save the setting parameters automatically power-down save and other functions, Almost all the needs!

Order tracking

Product Featue :

  1. Working voltage: DC5V-DC30V (wide voltage anti-connection protection)
  2. Trigger signal source: high-level trigger DC 3.0V—24V signal ground and system ground to improve the system's anti-interference ability can also short-circuit the ground
  3. Output capacity: DC DC 5V--36V, continuous current 15A at normal temperature, power 400W! Under the condition of auxiliary heat dissipation, the maximum current can reach 30A
  4. Product size: 64mm*35mm*19.3mm
  5. Mounting hole: diameter 3mm
  6. Working temperature: -40 ° C ~ 85 ° C

Operating mode :
  1. P1 mode: After the signal is triggered, the MOS transistor turns on the OP time and then turns off; in the OP time, the following operation
  2. P1.1: The signal is triggered again.
  3. P1.2: Signal triggers re-timed again
  4. P1.3: The signal triggers reset again, the MOS tube is disconnected, and the timing is stopped.
  5. P-2: Give the trigger signal, after the MOS transistor is disconnected from the CL time, the MOS transistor turns on the OP time.
  6. After the timing is completed, the MOS transistor is disconnected.
  7. P3.1: Give the trigger signal, after the MOS transistor turns on the OP time, the MOS tube turns off the CL time, then loops the above action, the signal is given again in the loop, the MOS tube is disconnected, the timing is stopped; the number of cycles (LOP) can be set.
  8. P3.2: No need to trigger signal after power-on, MOS tube turns on OP time, MOS tube disconnects CL time, loops the above action; loop number (LOP) can be set
  9. P-4: Signal hold function If there is a trigger signal, the timing is cleared, the MOS transistor remains on; when the signal disappears, the MOS transistor is disconnected after timing the OP; during the timing, there is a signal and the timing is cleared.

Dimension


  1. Relay enable mode
    ON : MOS tube is allowed to conduct during OP conduction time
    OFF : MOS tube is disabled, always off
    Short press the STOP button on the main interface to switch between ON and OFF. The current state will flash, then return to the main interface. This function is the emergency stop function. One button is used to open and close the MOS tube.
  2. Sleep mode (long press the stop button to view the current mode)
    C-P sleep mode: within five minutes, without any operation, the digital tube automatically turns off the display, the program runs normally.
    O-d normal mode: the digital tube is always on display
    Press and hold the STOP button for 2 seconds and then release to switch the C-P and O-d states. The current state will flash and then return to the main interface.

          How to set parameters

1) First determine the working mode of the MOS tube
According to the working mode of the MOS tube, in the main interface (when the module is powered on, it will flash the current working mode (default P1.1 mode), then enter the main interface "press and hold the SET button for 2 seconds and then release" to enter the mode. Select the interface, press the UP, DOWN button to select the mode to be set P1.1~P-4
2) After selecting the mode to be set (for example, P3.2), press the SET button to set the corresponding parameter. At this time, the parameter to be set will flash OP ON time, CL OFF time, LOP cycle number “---” Represents an infinite loop, adjusts the parameter value through UP and DOWN, supports long press (rapid increase or decrease) and short press (increase or decrease 1 unit); after setting the parameter value, select the decimal point position by short pressing the STOP button. , select the timing range (corresponding time 0.1 seconds ~ 999 minutes); short press the SET button to set the next parameter of the current mode, the process is the same as above.
3) After setting the parameters of the selected mode, press and hold the SET button for 2 seconds to release, the currently set mode will flash, then return to the main interface and set the parameters successfully.
4) Main interface: “000” (no decimal point) is displayed when the MOS tube is not working, and the MOS tube has a decimal point in the working state.
5) Mode selection interface: long press SET button to enter, after setting is completed, long press SET button to exit, return to the main interface
