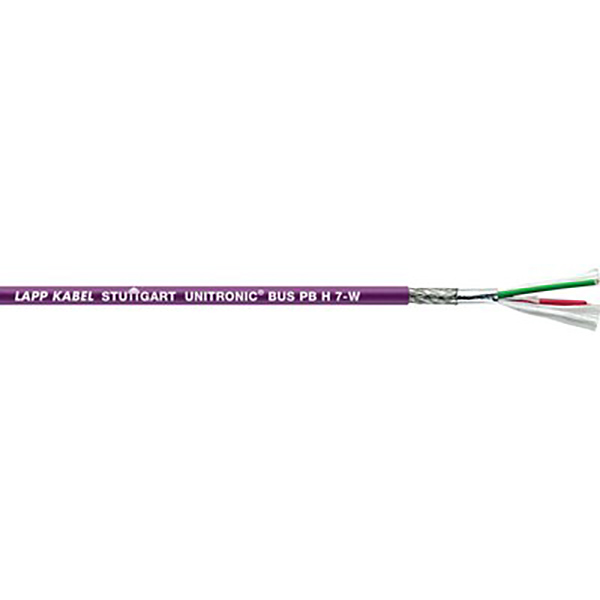

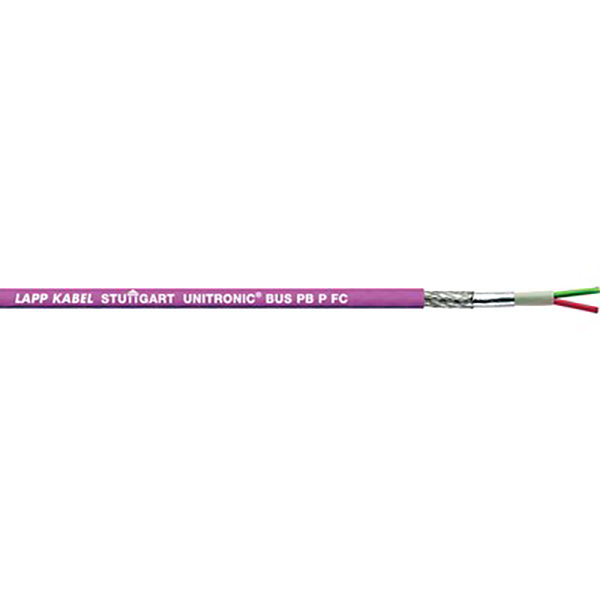

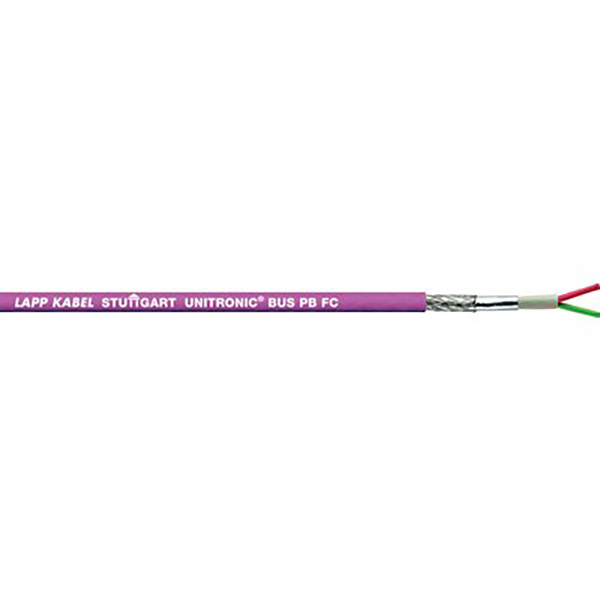

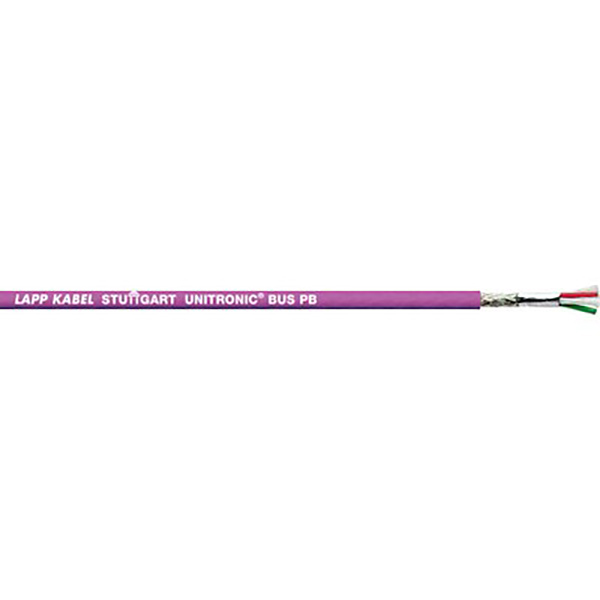

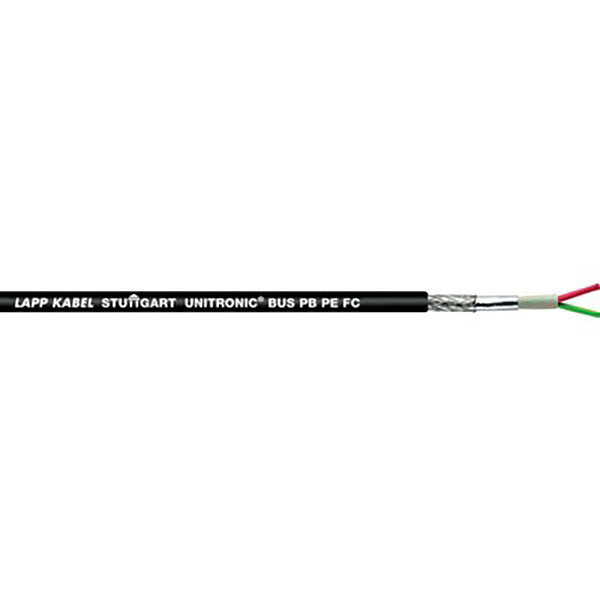

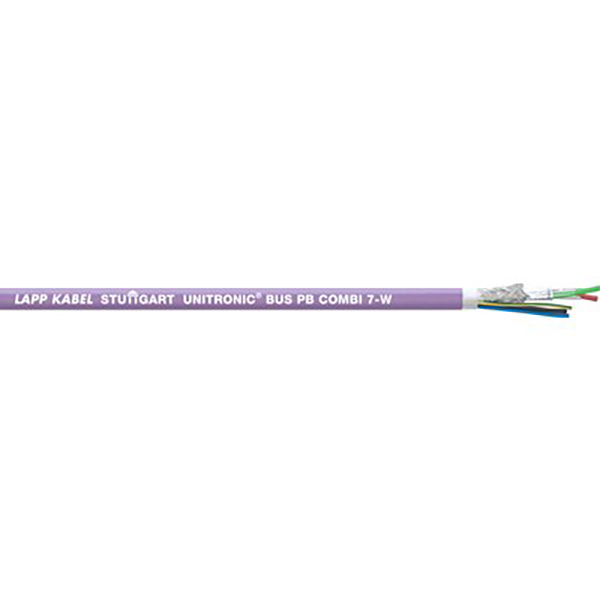

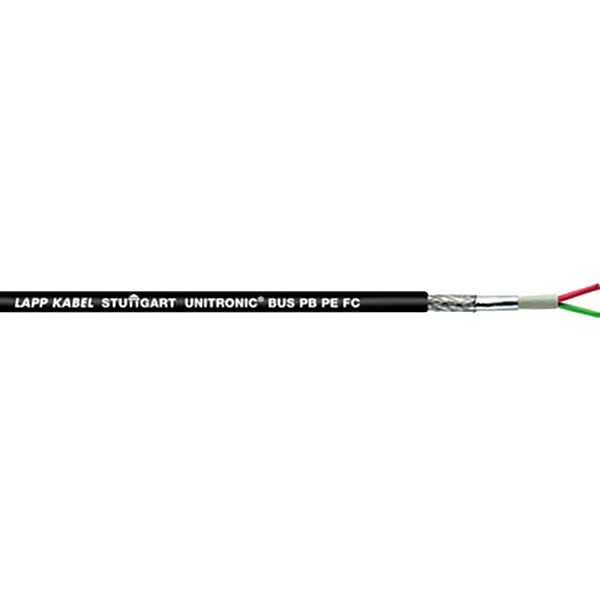

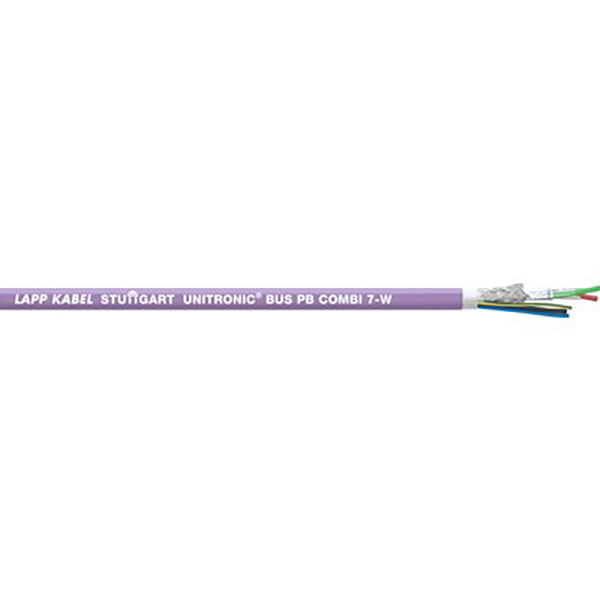

UNITRONIC® BUS PB

Application range :

1.
   For fixed installation Maximum electromagnetic screening Dry or damp rooms
   Item nos. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant

Product features :

1.
   These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
2. Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply (cable type A, PROFIBUS-DP): 93.75 kbit/s = 1200 m 187.5 kbit/s = 1000 m Last Update (05.08.2022) ©2022 Lapp Group - Technical changes reserved Product Management www.lappkabel.de
3. You can find the current technical data in the corresponding data sheet. PN 0456 / 02_03.16

              Note :

1.
   Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon
   request.
2. Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related
   surcharges.
3. Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths
4. Packaging size: coil ≤ 30 kg or ≤ 250 m, otherwise drum
5. Please specify the preferred type of packaging (e.g. 1 x 500 m drum or 5 x 100 m coils).
6. SIMATIC NET® is a registered trademark of Siemens AG
7. Lapp Kabel is a member of the PROFIBUS user organisation (PNO)
8. Photographs and graphics are not to scale and do not represent detailed images of the respective products.
9. Prices are net prices without VAT and surcharges. Sale to business customers only.
