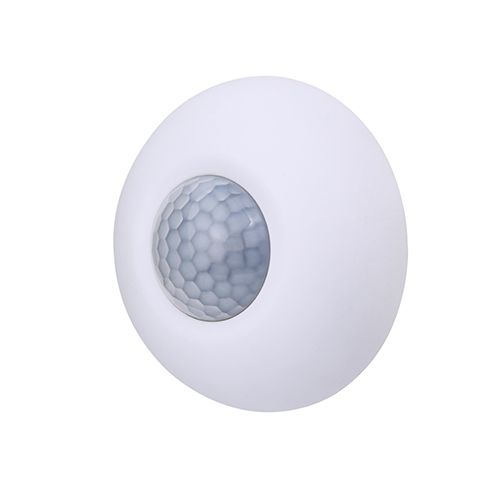

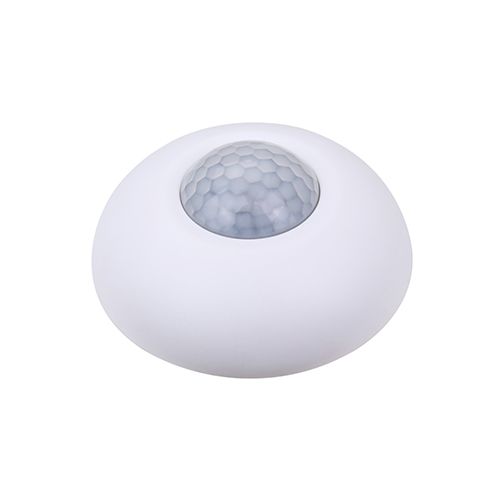

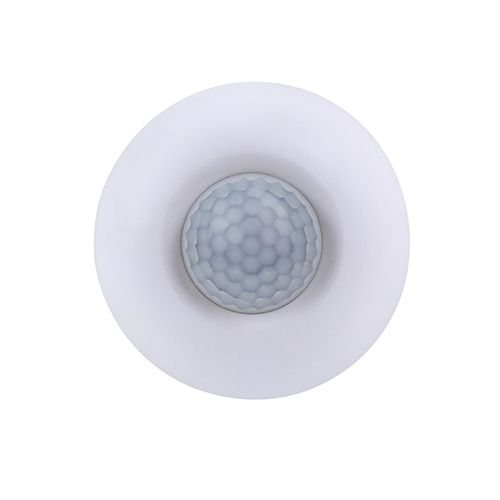

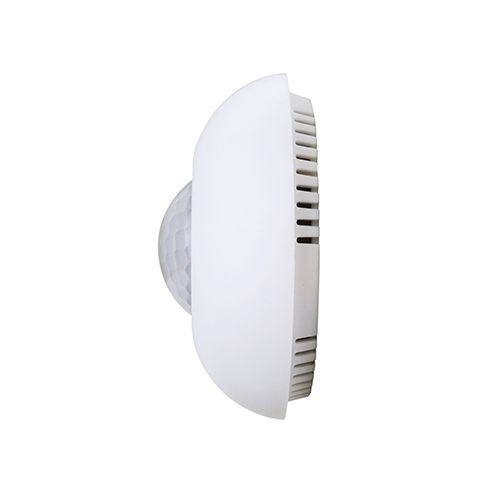

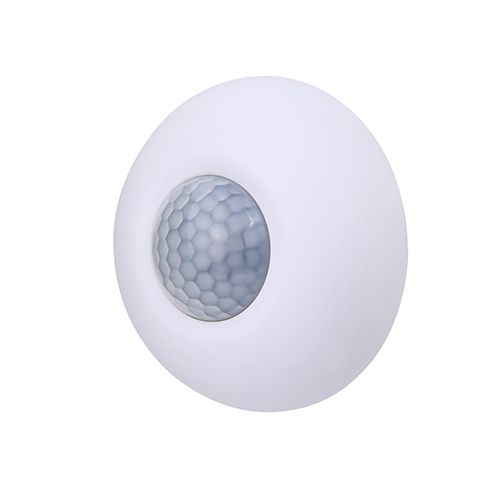

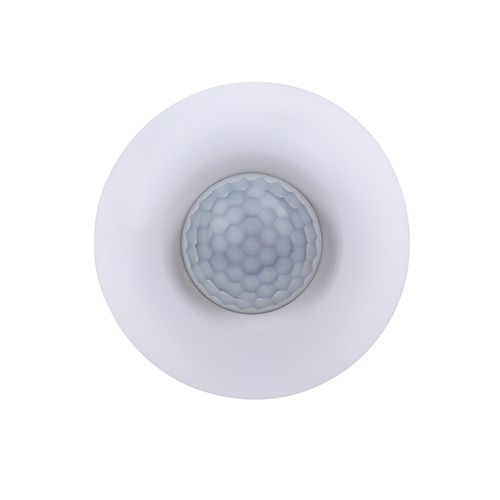

M_HS05.1 KNX Ceiling Mount PIR & Lux Sensor

Feature

• With 2CH lighting control, 4 sections of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set.
• With 2CH constant brightness control, dimming values and forced operation can be set.
• The sensor has 5 logic blocks and each block contains 10 object outputs. Dry contact, telegram locking/unlocking and delay time can be set.
• Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
• 5 Logic inputs: PIR sensor status, brightness value, temperature , dry contact status and external telegrams.
• 2 logical relations: AND, OR.
• 2 working modes: Single mode and master / slave mode.
• 2CH dry contact can be set as dry contact and LED status display and the operation function can be set as switch control, dimming control, scene control and percentage control.
• The logic validity can be set by external telegram.

 Basic Parameters

External Environment

Specifications

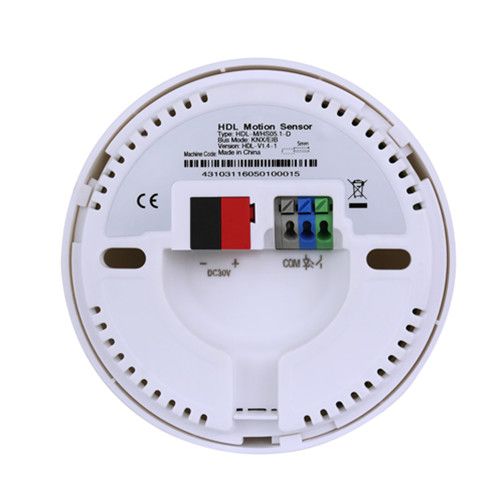

• Working voltage 21~30V DC
• Working current 5mA/30V DC
• Communication KNX
• Cable diameter of KNX terminal 0.6 - 0.8mm
• PIR detection range Φ8m (Installation height: 3m)

• Working temperature -5℃~45℃
• Working relative humidity ≤90%
• Storage temperature -20℃~60℃
• Storage relative humidity ≤93%

• Dimensions Φ84×42.6 (mm)
• Net weight 50g
• Housing material ABS，PC
• Installation
• Ceiling mount
• Protection rating (Compliant with EN 60529) IP20
