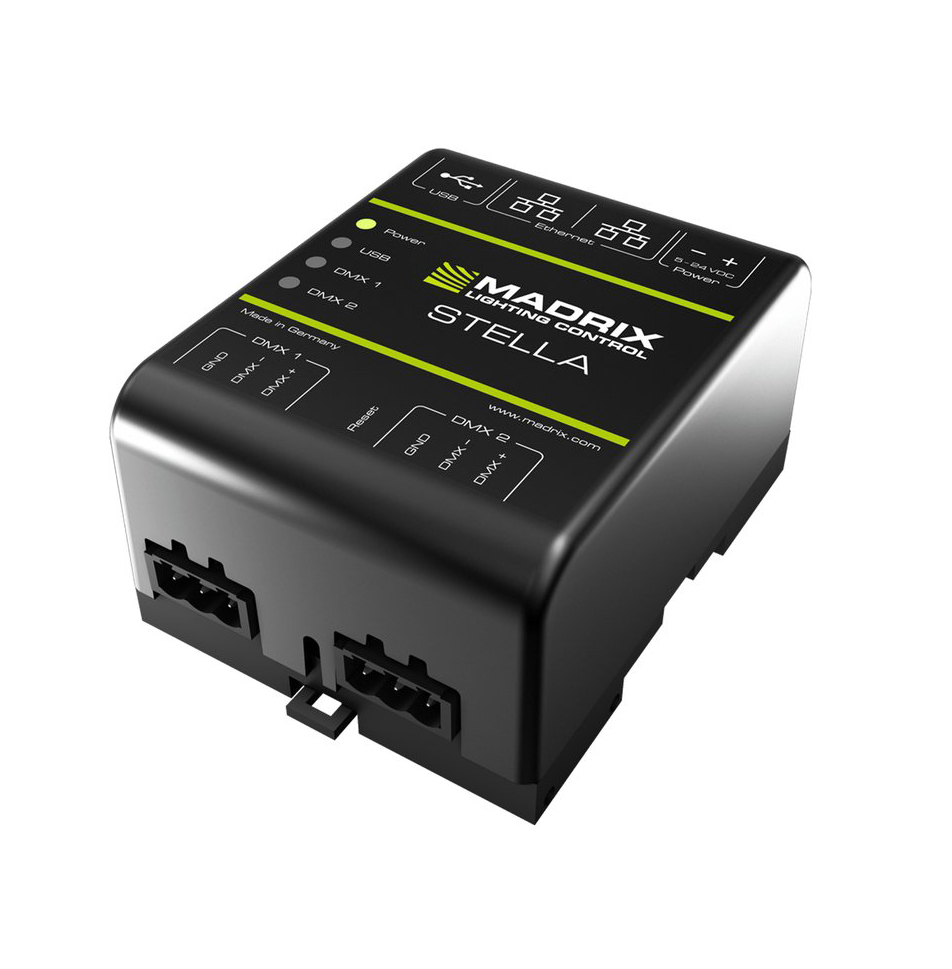

MADRIX STELLA

The 2-port network node with RDM support for solid-state projects.

It makes sure that your carefully selected DMX fixtures reliably light up with vivid colors and smooth animations. It syncs across ports and different devices to make sure the lighting always looks amazing.

Controlling 2 DMX universes, you can choose output or input for each port, which directly connect to DMX512.

But that's not all. MADRIX STELLA supports Remote Device Management. It is no longer only about sending out control data. Devices now respond. This enables unprecedented possibilities for remote configuration and monitoring.

While previously unheard of, lighting control with Art-Net and supervision with RDM are even possible at the same time, continuously during live operation.

  The MADRIX STELLA is a dedicated control interface for DMX512 and Art-Net or Streaming ACN that is designed for high quality and practicability in permanent LED installations.

• Art-Net / Streaming ACN / USB

Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network. In addition, simply connect to MADRIX 5 over USB.

• Easy Configuration

MADRIX STELLA offers powerful features. Managing the device is still quick and easy. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.

• 3rd-Party Controllers

MADRIX STELLA complies with official protocol specifications and can be used as a regular node with your other consoles, controllers, or software solutions.

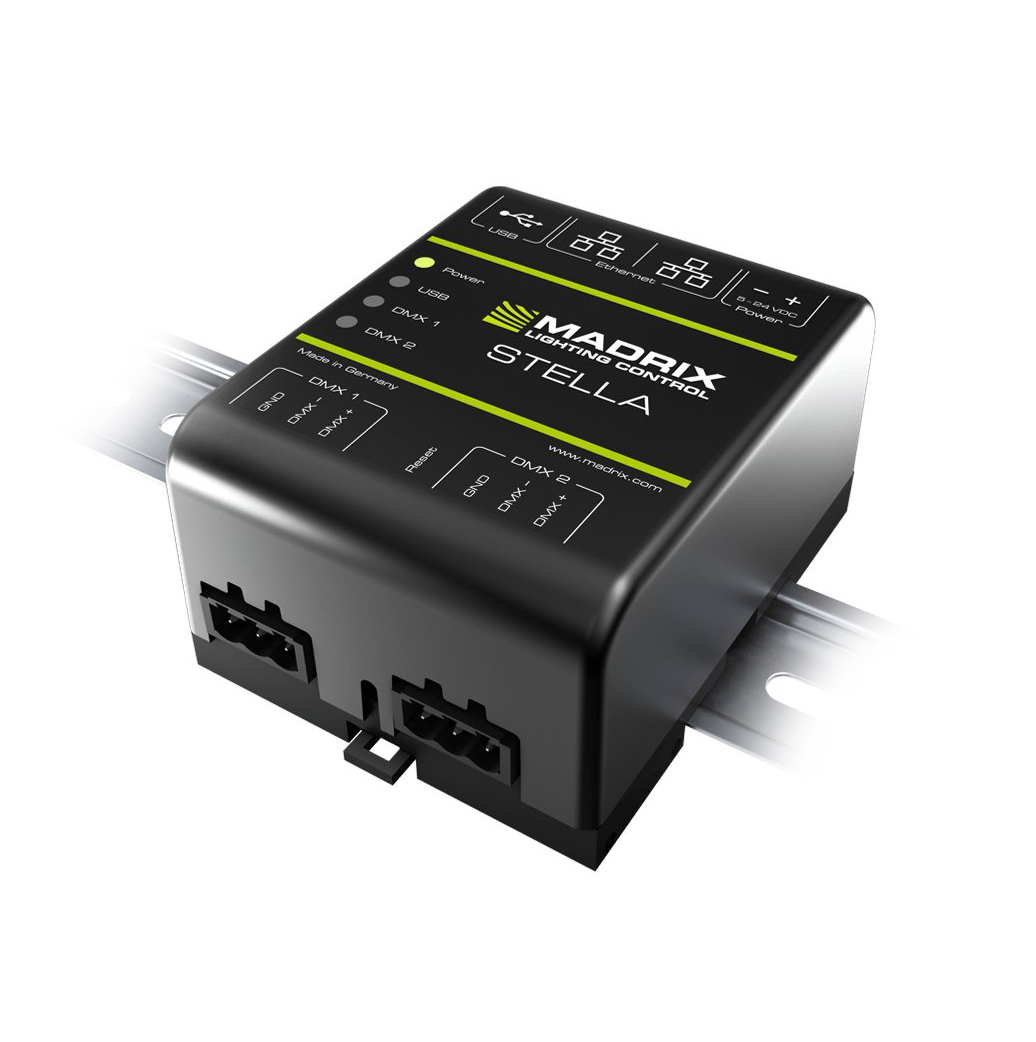

• Designed For DIN Rails Or Walls

Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.

•  2 DMX-IN/OUT

Directly connect DMX512 to the two 3-pin screw terminals to distribute 2 DMX universes per unit as input and/or output, eliminating the need for XLR connectors as a result. Simply use several units at the same time for larger projects.

• Sync Mode

MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all output ports and across multiple devices to get an optimal image on the LEDs without visual interruptions.

• RDM & Daisy-Chain Support

2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together. On top, the device supports the Remote Device Management standard.

• Invaluable Features

The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.

Seamless Integration Of Art-Net & RDM

RDM is fully supported over Art-Net, including ArtRdm, all other required packets, and full and continued discovery of RDM devices. Use MADRIX STELLA and MADRIX RADAR together for additional benefits: 1) All RDM devices/sub-devices connected to STELLA are automatically unlocked in the RADAR Software for free, 2) With RADAR, the complete RDM specifications of ANSI E1.20 and ANSI E1.37-1 are available to you over Art-Net, 3) Thanks to STELLA's Packet Multitasking, RDM and Art-Net can be sent and received at the same time and during live operation.

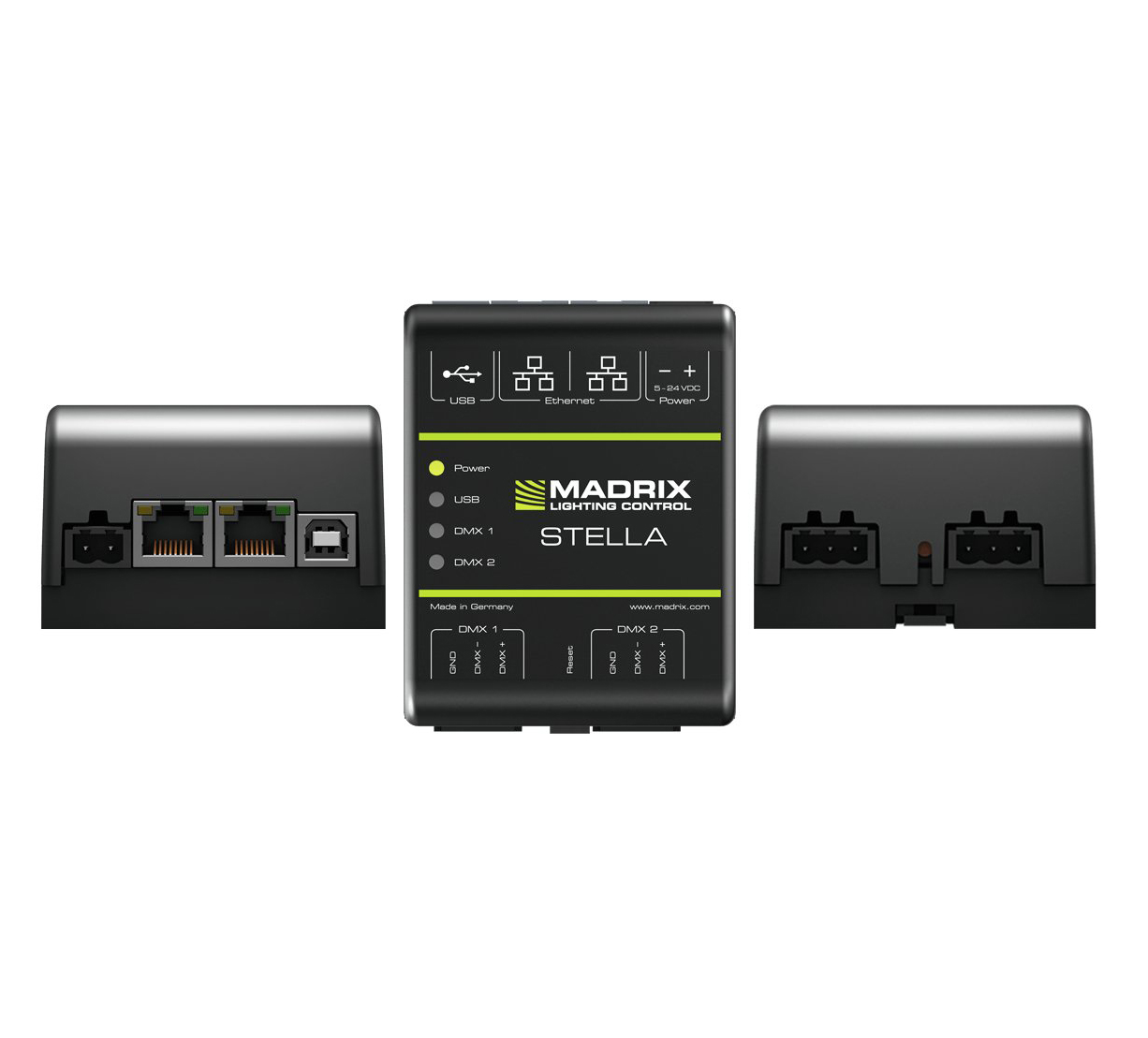

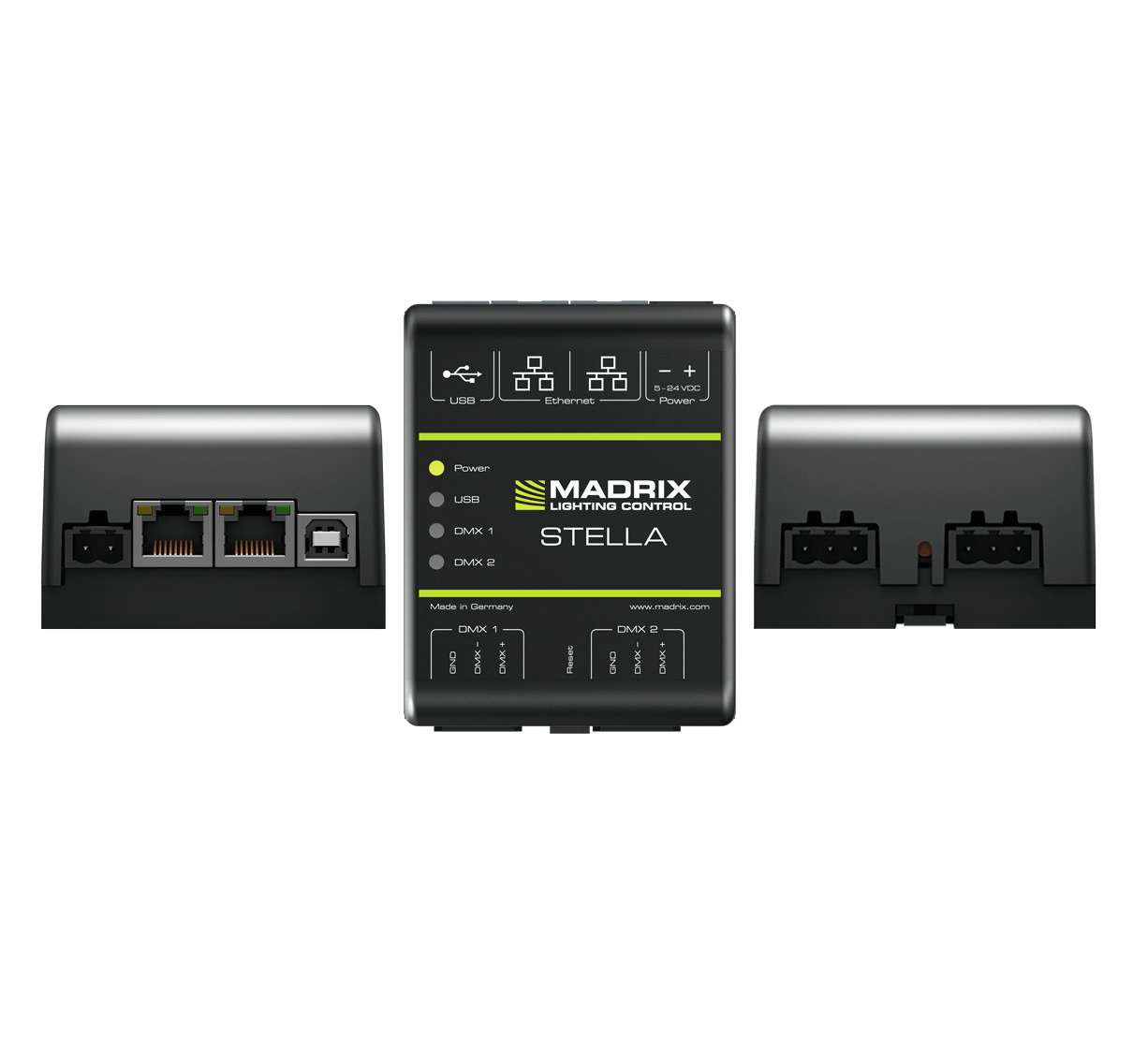

• 2x DMX-IN/OUT (via pluggable screw terminals)
• 2x RJ45 Ethernet ports
• 1x USB port
• 1x Power (via pluggable screw terminal)

• 1x MADRIX STELLA
• 1x Set of screw terminals (2x 3-pin and 1x 2-pin)
• 1x USB 2.0 cable (certified)
• 2x Wall-mount brackets
• 1x Technical manual / quick start guide
