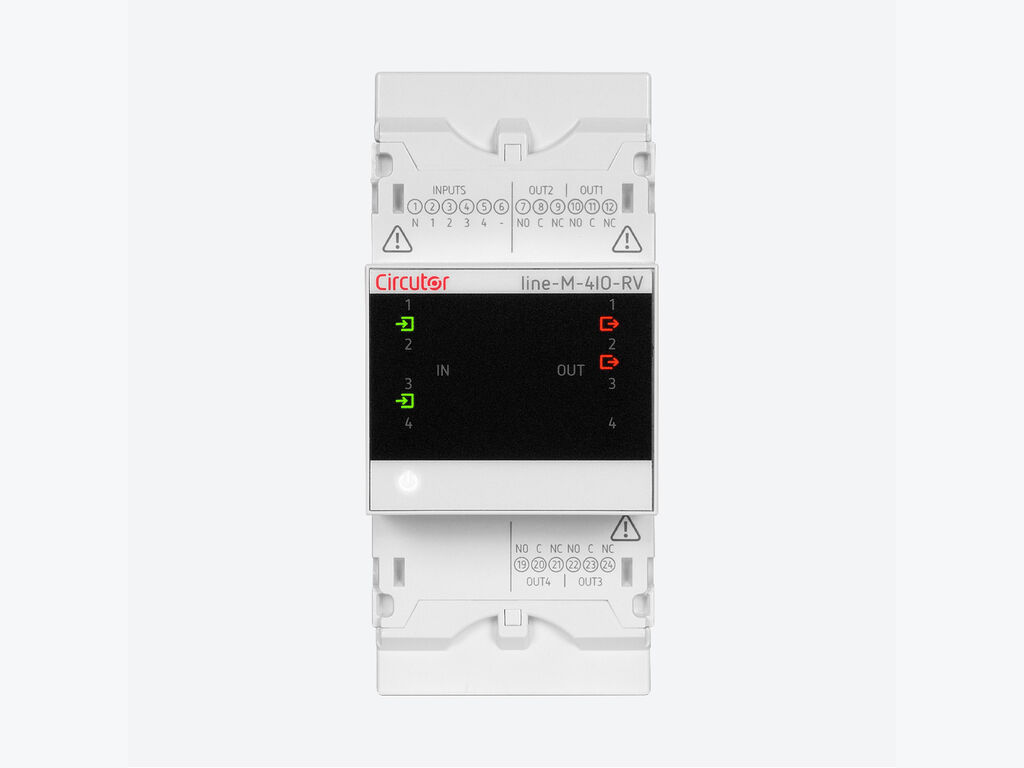

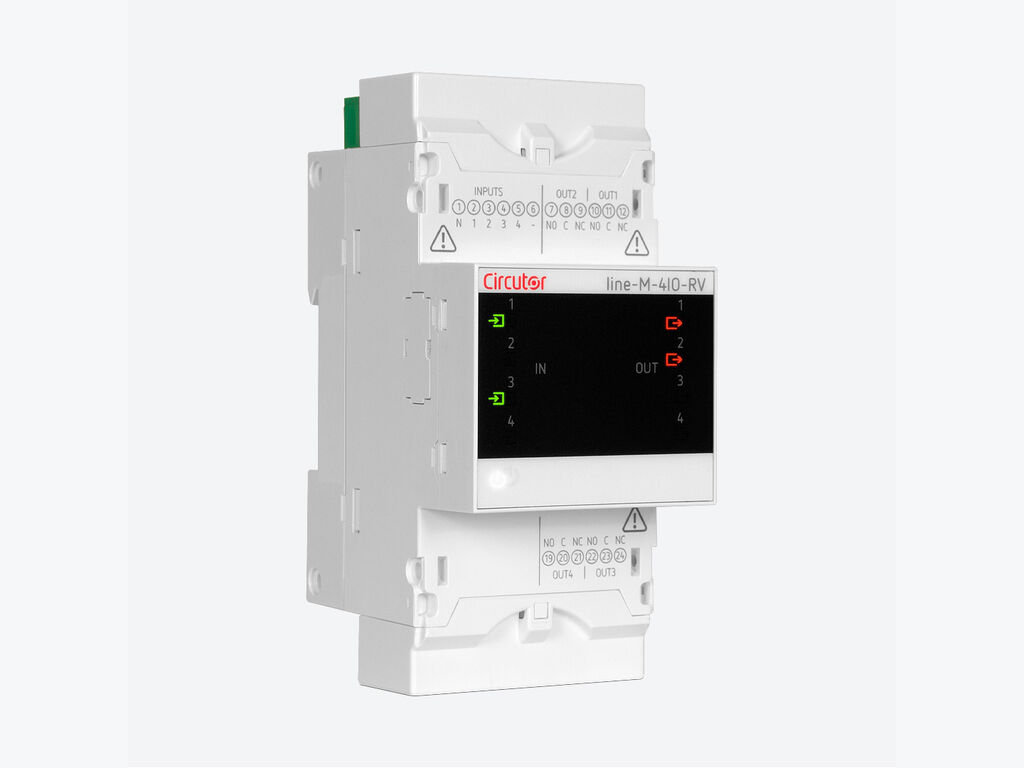

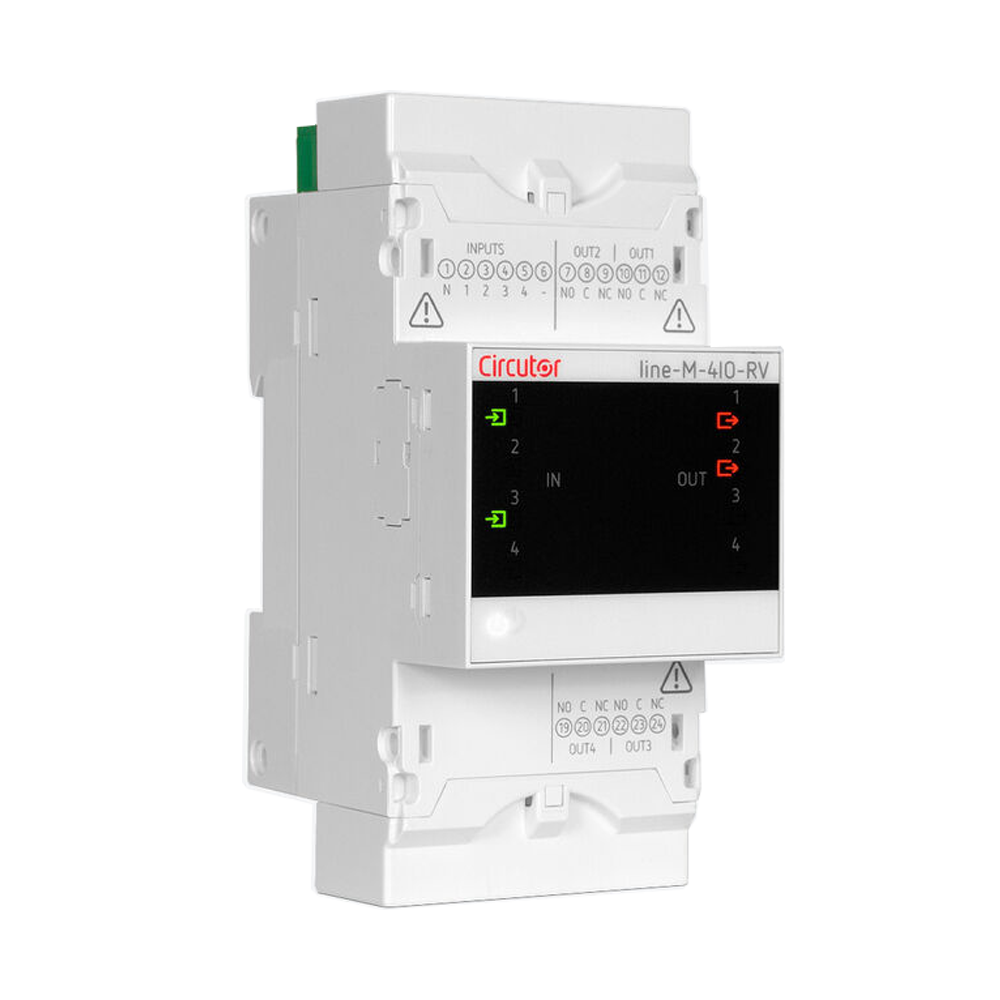

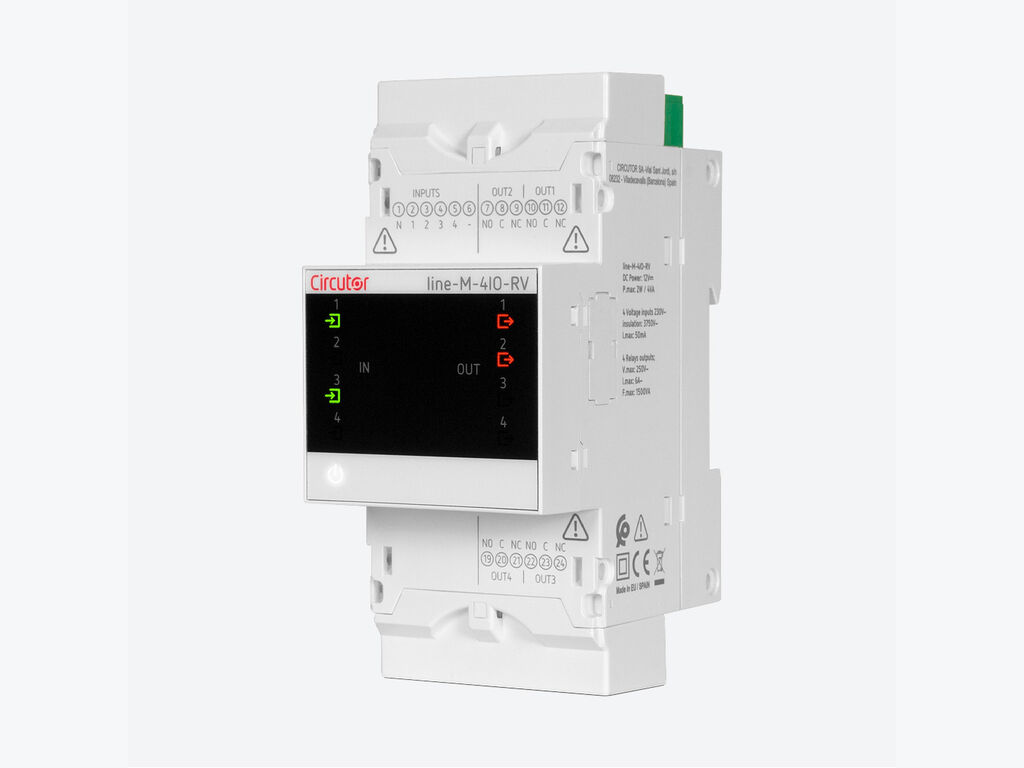

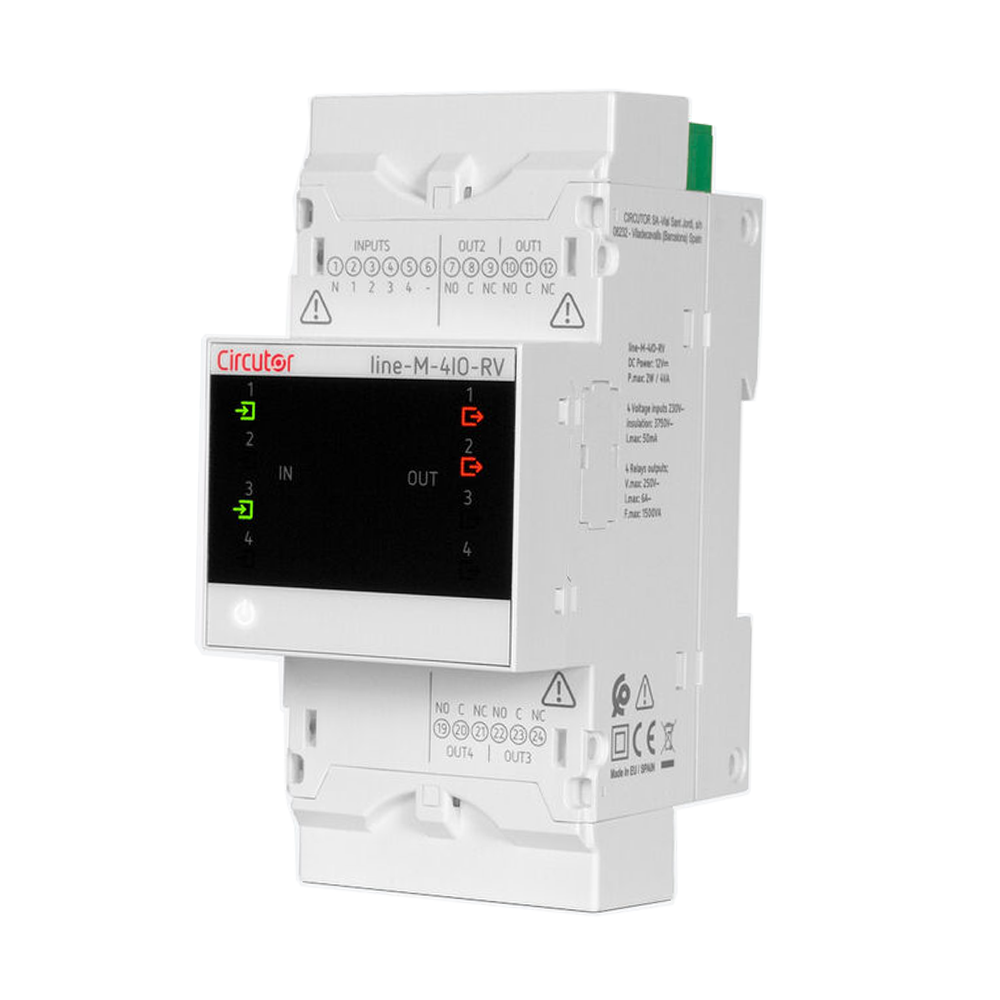

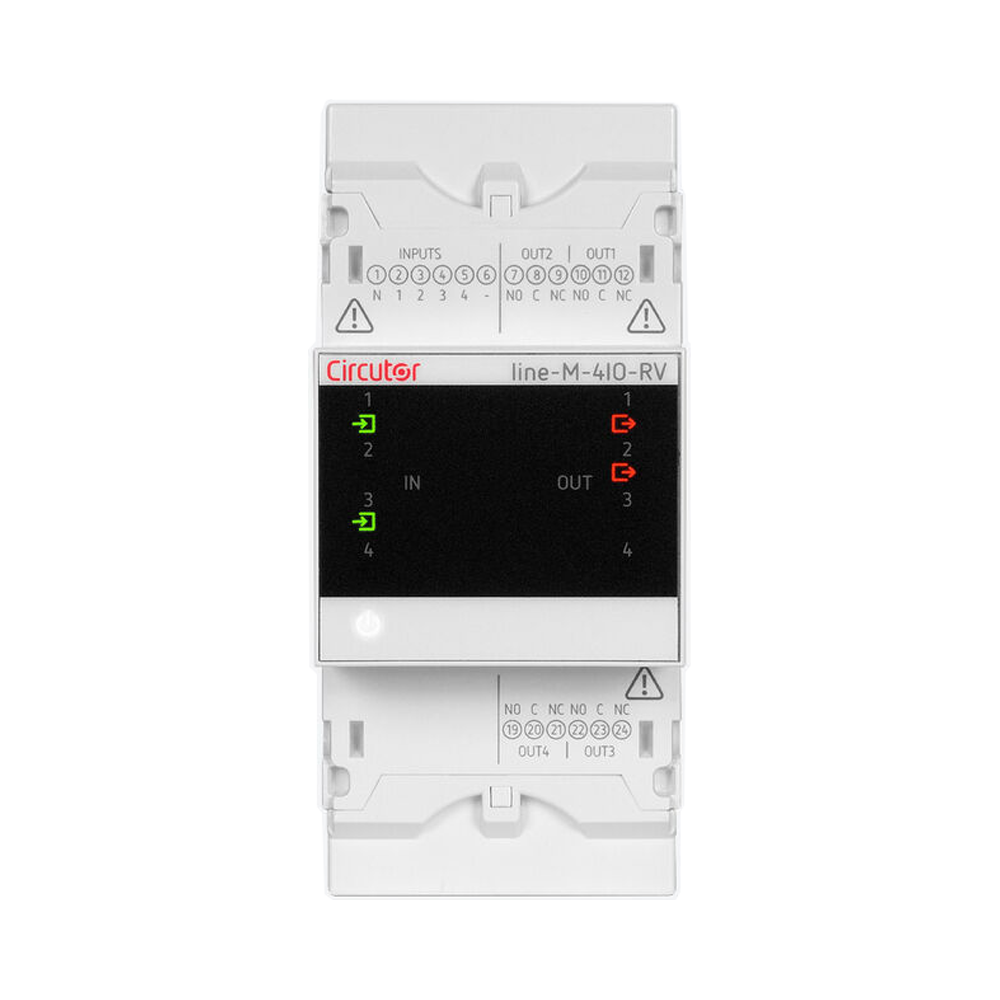

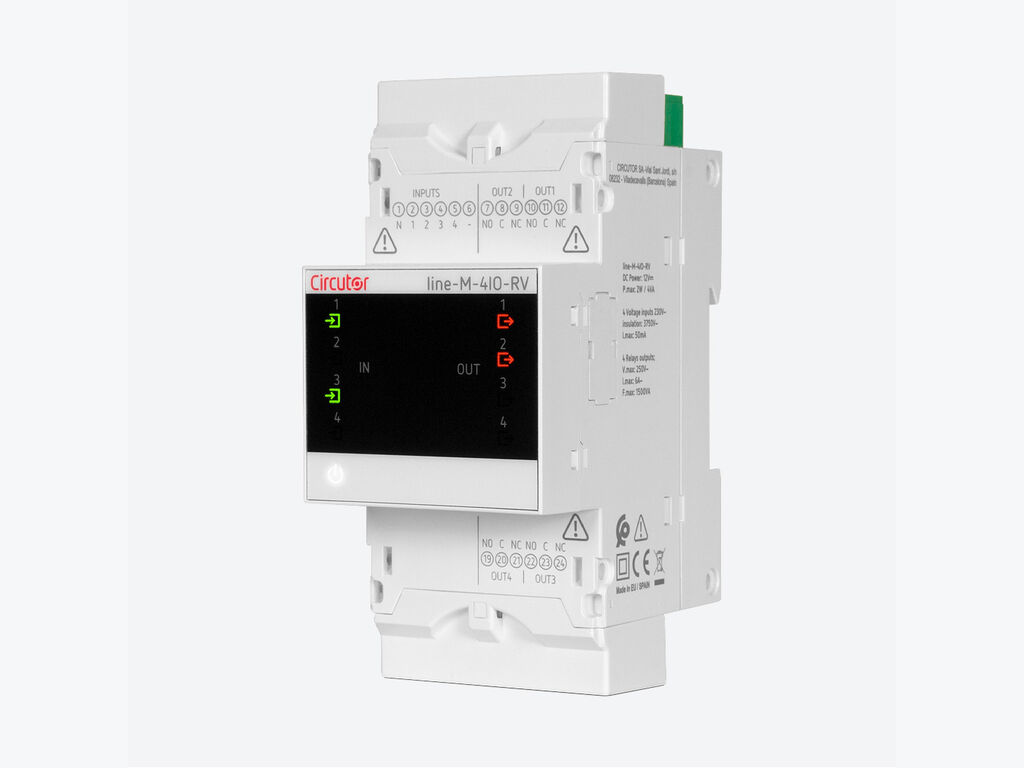

Line-M-4IO-RV, Expansion modules

                    Description :

Module with 4 230V relay inputs and outputs.

The expansion modules of the Line range provide a simple way to extend the features of any version of the line-ED-Cloud or line-EDS-PS, and of the line-CVM-D32 network analyser.

They allow adding digital outputs and inputs, analogue inputs and outputs or any combination thereof, to the devices.

The modules are connected laterally and are detected automatically when the lateral connection is made, which greatly simplifies the installation and configuration of the modules.

                    Applications :

• Expansion of inputs/outputs from line-CVM-D32 or line-EDS network analysers.
• Alarms can be programmed independently based on high/low values, hysteresis, timer on/off delays, normally open or closed rest state and interlocks.
• Track the status of components in the installation by using the status of the inputs to the module with network voltages of up to 230V~
• Management of up to 4 tariffs with activation of the different inputs to the module.
