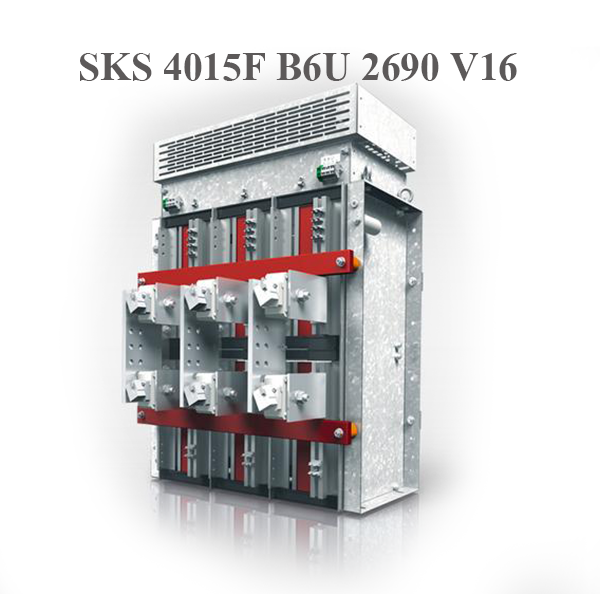

Diode/Thyristor Stacks

Standard assemblies for diode/thyristor rectifiers and AC controllers

Diode/Thyristor Stacks Benefits

The SEMISTACK CLASSIC family offers a pre-qualified power assembly ready for integration in line with rigorous SEMIKRON qualification tests and current environmental standards. The platform design has been optimised to achieve the best balance between costs and performance for powerful rectifiers and AC controllers right up to the megawatt range.

Diode/Thyristor Stacks Applications

The SEMISTACK CLASSIC product range is designed for fast integration of industrial rectifiers and AC controllers. Each power stack has been sized to embed semiconductors with a suitable RC commutation topology, proper AC fuses and cooling devices. The high power range has been improved using a new heatsink profile, resulting in modularity, various fan options, low maintenance and weight reductions.
