HLG-320H-C700B

SKU : HLG-320H-C700B

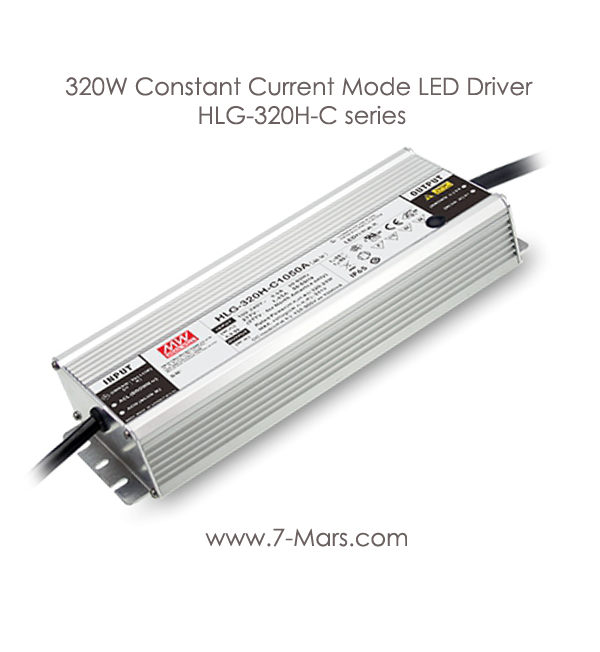

320W Constant Current Mode LED Driver HLG-320H-C series

*Type B IP67 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance) / Note : In Stock  Power Output : 299.6W. / Voltage : 214 - 428V / Current : 700mA.

Description :

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90-305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40C ~ +85C case temperature under free air convection. The design of metal housing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features :

1. Constant Current mode output
2. Metal housing with Class I design
3. Built-in active PFC function
4. IP67 / IP65 design for indoor or outdoor installations
5. Function options: output adjustable via potentiometer;
6. 3 in 1 dimming
7. Typical lifetime>62000 hours
8. 7 years warranty

Applications :

1. LED street lighting
2. LED fishing lamp
3. LED harbor lighting
4. LED building architectural lighting
5. LED greenhouse lighting
6. LED bay lighting
7. Type (HL for use in Class I Division 2 hazardous (Classified) location.
