TQ Series Current transformer Spilt core, Button opening

 DESCRIPTION :
  • The TQ transformer range has been designed to facilitate installation thanks to its split core, which allows it to be installed without having to shut off the power, in both cable and busbar installations. Main Features:
  • Types from 100 to 5000 A in the primary
  • Secondary encoding types.../5 A,.../1 A,.../250 mA
  • Busbar dimension from 20 x 30 mm to 160 x 80 mm
  Certified transformers :
  • Accessory for DIN-rail mounting (not available for TQ-12)
APPLICATIONS :
  • Ideal for installations where the electricity cannot be shut off when installing the transformers.
 TQ - Split core transformer TQ - Split core transformer

Order tracking

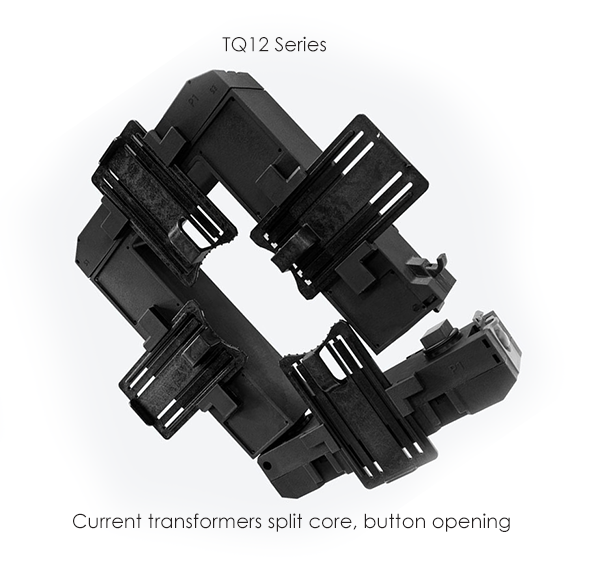

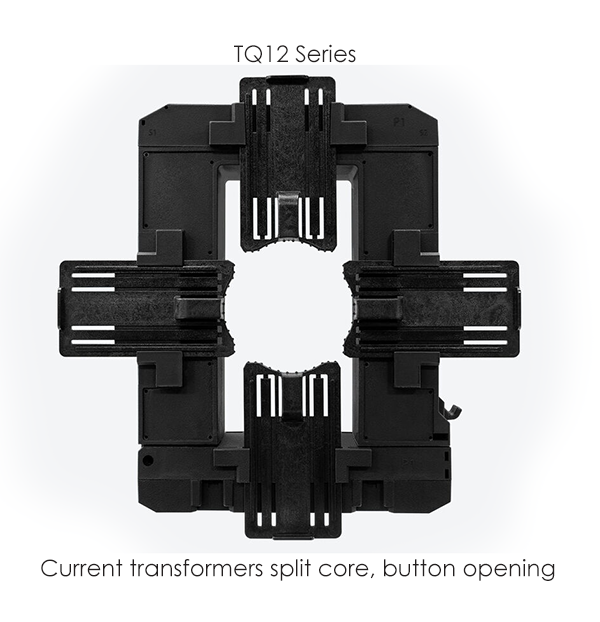

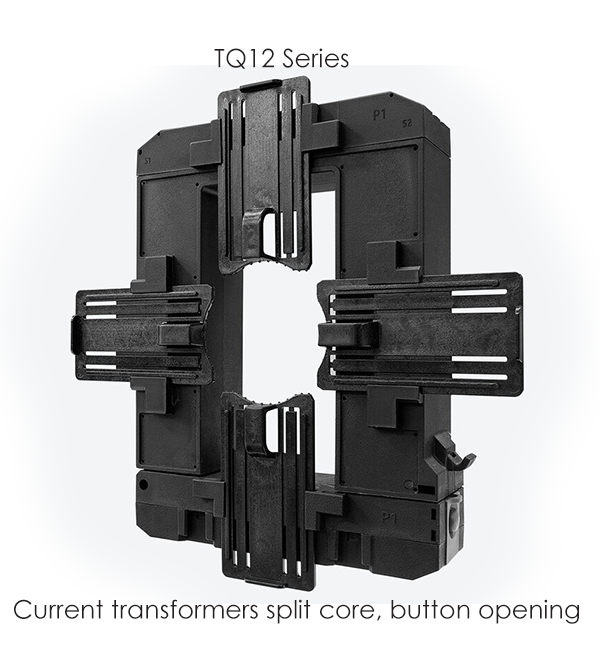

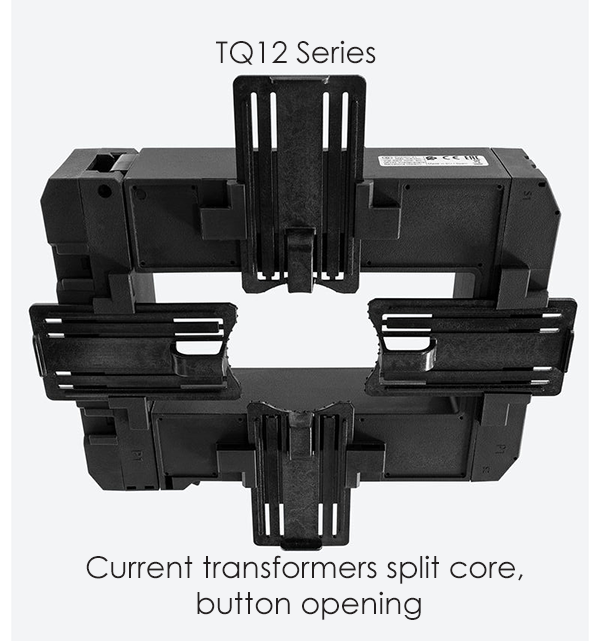

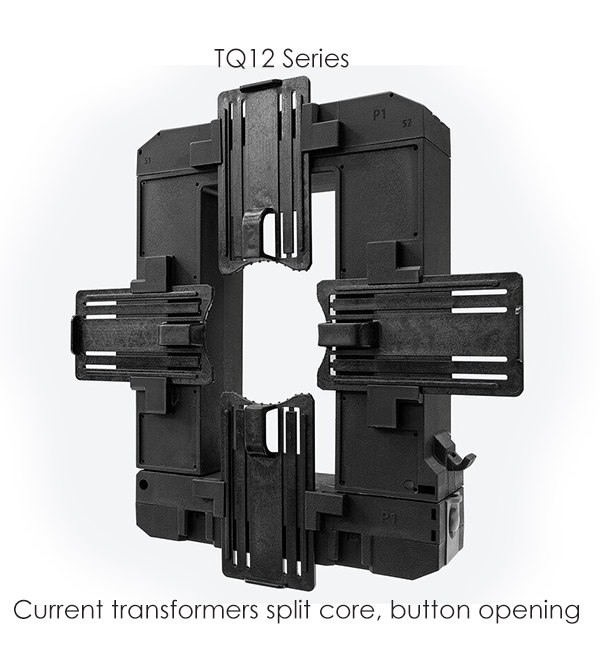

  • TQ12 Series Current transformers split core, button opening
    0.00 USD

    Variants available
